0.45 PTFE Pink Syringe Filter

Compressed sterile air filters can be used to create clean rooms free of bacteria and other harmful particles for people with compromised immune systems. Each air supply pump is also equipped with a sterile air filter to ensure the delivery of pollution-free air. These air filters are usually sterilized by gamma rays and packaged separately.

Syringe filter is a disposable device used in laboratory settings to filter small volumes of liquid samples. It is commonly utilized to remove particulate matter and microorganisms from solutions before analysis or to protect sensitive instruments from contamination.
Syringe filters consist of a plastic housing with a membrane filter at one end and a female luer lock or luer slip connection at the other end. The filter membrane is typically made of materials such as nylon, polyethersulfone (PES), polytetrafluoroethylene (PTFE), or cellulose acetate.

Syringe filter is a quick, convenient and reliable filter tool used routinely in the laboratory.Because they don’t need to change the membrane and filter cleaning, it’s eliminating the complex and time-consuming preparation. It is widely used in the sample pre filtration, removal of particles, aseptic filtration of liquids and gases. It is the preferred method to filter small samples before loading into HPLC and GC ,and it is often used with disposable syringe.

You can choose a PTFE needle-punched filter to improve the filtration efficiency in any area. They provide high-performance filtration through an application-centric design and can be used in various industries that process organic samples.

Membrane materials are supplied under the industry’s best names, and ISO9000 certified manufacturing uses the latest manufacturing technology to ensure high quality and consistent products, performed to the highest standards in certified cleanroom conditions. All syringe filters are HPLC certified.

In HPLC analysis, the particle size of the chromatographic column packing is small and easily blocked by contaminant particles. Therefore, samples and solvents must be pre-filtered to remove particulate contaminants and protect the instrument.

The reinforcement ring can provide greater strength to the shell to prevent leakage and bursting (30mm product pressure is rated at 120 psi). The shell is made of solvent-resistant, low-extraction polypropylene resin, specifically selected for wide compatibility with common HPLC sample matrices. The solution can be filtered at temperatures up to 100¡ãC, which is convenient and easy to use.

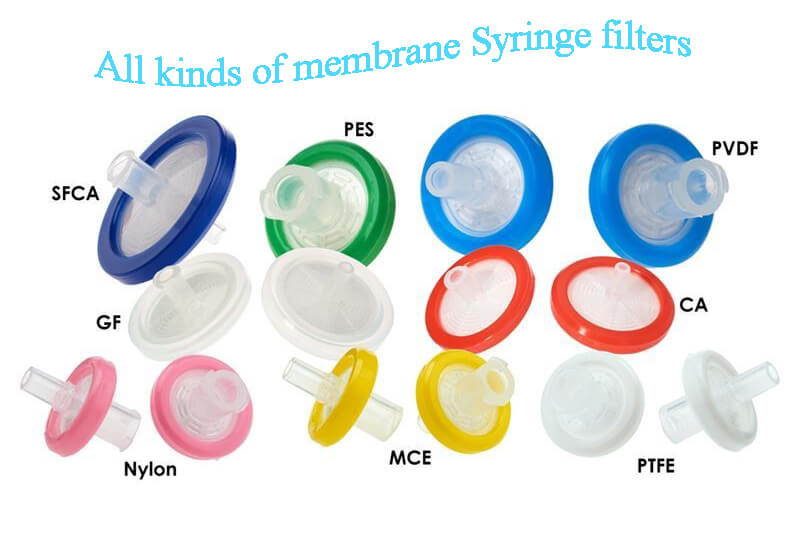

Our Syringe Filters are high quality, well packaged and sold at a fair competitive price. They are available in most of the major membrane materials including Nylon, PTFE, PES, MCE, PVDF, CA, PP, and GF which are supplied in 13mm, 17mm, 25mm and 30mm formats in virgin polypropylene housings.

The syringe filters are designed for easy and efficient filtration of liquids and gases. They feature a syringe-like structure with an inlet and outlet, allowing for direct attachment to a syringe or other fluid delivery systems. The filters remove particulates, microorganisms, and unwanted substances, ensuring clean and clarified samples for analysis.

Aijiren’s PVDF syringe filters are hydrophilic in nature and have strong chemical compatibility. They can bring precision to your research and ensure the highest level of performance. Our filter range is designed with female leur-Lock imports and male Leur-slip exports. In addition, these filters have better mechanical resistance and it can withstand high temperatures.

syringe filter is a small, disposable filter device that is commonly used in laboratory settings for the filtration of liquids. It is designed to be attached to a syringe, allowing the liquid to be passed through the filter membrane under pressure.
syringe filter is a small, disposable filter device that is commonly used in laboratory settings for the filtration of liquids. It is designed to be attached to a syringe, allowing the liquid to be passed through the filter membrane under pressure.

Syringe filter is a small, disposable device used for filtration purposes in laboratories and other scientific settings. It consists of a plastic housing with a membrane filter at one end and a female luer lock or male luer slip connection at the other end, allowing it to be attached to a syringe.
The purpose of a syringe filter is to remove impurities, particulates, or unwanted substances from a liquid sample before it is injected or analyzed. The membrane filter within the syringe filter acts as a barrier, selectively allowing only certain particles or molecules to pass through while retaining larger particles.

Membrane: HPLC-certified PVDF
Use with: Alcohols, weak acids, proteins, peptides and other biomolecules
Don¡¯t use with: ?Some strong acids, bases, esters, ethers or ketones.?
Sterilization: Syringe filters can be sterilized by autoclave at 125¡ã for 15 minutes.?
Applications: General biological filtration, filtration of samples for high protein recovery.?

The PTFE syringe filter is tritium-free and has a two-way membrane support and Luer lock inlet/outlet and a safe and suitable syringe. The membrane type and pore size are printed on each filter for easy identification. All Aijiren syringe filters are 100% integrity tested and comply with ISO 9002 standards. The sterilizing filter is sterilized with gamma rays. And detect no pyrogen, no cytotoxicity.

The syringe filter has the following characteristics:
1. Convenient, readily available, easy to operate, economical and practical.
2. Reliable bacteria retention efficiency ensures the filtering and sterilization effect.
3. Larger effective membrane filtration area: 1.09cm2.
4. High flow rate, high throughput, dead volume no more than 10¦Ìl.
5. Very low protein adsorption.
6. Pass HPLC dissolution test.

13 mm Syringe Filters: For sample volumes <10 mL range; Ideal choice for most applications; Holdup (dead) volume is <15 ul; Female inlet luer lock; Maximum operation pressure <15 bar; Bubble point: Hydrophilic 2-3 bar; Hydrophobic 1-1.2 bar.

The hydrophobic PTFE syringe filter membrane is made of hydrophobic polytetrafluoroethylene. It filters organic solvents, aqueous solutions and gases that are chemically corrosive, and can withstand most strong acid and alkaline solutions. Product application: Used for the clarification and filtration of strong acids and alkalis, the filtration of high-temperature liquids and special chemical reagents, and the clarification and filtration of air or various gases.

The membrane materials produced by Aijiren are provided by the most famous people in the industry, and in the ISO9000 certified production process, under certified clean room conditions, the latest manufacturing technology is used to ensure high-quality and stable products to achieve the highest standards . All syringe filters are HPLC certified.

Hydrophobic PTFE (Polytetrafluoroethylene) syringe filters are suitable for gaseous and organic solutions, with excellent performance for high corrosive samples. It is possible for an extended sampling range using hydrophobic PTFE filters for wider chemical resistance to aggressive substances and outstanding temperature stability. A PTFE syringe filter is an ideal choice for filtering and de-gassing chromatography solvents.

Aijiren syringe filter membrane use method introduction: before inhaling the sample, suck about 1ml of air into the syringe, so as to minimize the liquid residue, suck the sample into the syringe, invert the syringe and clear all the residues on the top Clean, connect the needle filter to the syringe, tighten it gently to ensure a good seal, filter the sample in the syringe and inject it into the sample bottle, and then follow the steps to maximize the recovery rate, remove the filter, and suck air into the syringe, Reconnect the filter head and eject all residual samples.

Aijiren’s membrane materials are supplied by the best names in the industry and the ISO9000 certified manufacturing is carried out to the highest standards, in certified clean room conditions, using the latest manufacturing technology to ensure a high quality, consistent product. All the syringe filters are HPLC certified.

Hydrophilic PTFE syringe filters offer a choice for aqueous samples that are diluted with harsh chemicals. These filters can handle high-temperature liquids, excellent flow rates, low protein binding, and are compatible with most bases, acids and organic solvents.

Customers can use sterile syringe filters to filter out particles and contamination in the fluid. Filtration requires a 0.2¦Ìm pore size to produce a sterile filtrate. The volume of the solution to be filtered varies from a few milliliters to several liters. Typical fluids may include serum-containing media, buffers, biological or protein samples, reagents, or other fluids, and need to be free of particulates or microbial contamination.

Membrane: ?ICP Certified PES (Polyethersulfone)??
Use with: ?Strong bases, alcohols, proteins, peptides
Don¡¯t use with: ?acids, ketones, esters, halogenated or aromatic hydrocarbons.
Sterilization: ?Syringe filters can be sterilized by autoclave at 125¡ã for 15 minutes.
Applications: ?Ion chromatography, tissue culture filtration, filtration of proteins and nucleic acids, high-temperature liquids.

Selected PES syringe filters provide a cleaner sample extract by removing interfering materials and fine particles down to the rated pore size. Performing a syringe filtration step before chromatographic injection helps ensure more consistent and reliable results, and helps protect delicate instruments and extend column life.
