13mm, 25mm 0.22um, 0.45um Hydrophobic PVDF membrane syringe filter for sale

Aijiren syringe filter membrane is made of polyethersulfone (PES), hydrophilic (Hydrophilic), pore size is 0.22¿˜m, shell diameter is 13mm, effective membrane diameter is 11.7mm, and effective membrane area is 1.09cmº†.

A syringe filter (or wheel filter) is a single-use, membrane-based device used for the removal of particulate impurities from small (≤ 100 mL) liquid samples. Selected based upon the desired end application, disposable syringe filters are commonly used in labs for fast and efficient filtering, material purification, or even sterilization.

The PTFE Syringe Filter in the picture has an aperture of 0.22, an outer diameter of 25mm, and a purple color. Aijiren also offers many other colors of Syringe Filter, such as yellow, pink, blue, green, etc. Customers can choose according to their preferences . The Syringe Filter produced by Aijiren can be equipped with many different types of filter membranes, which can be selected according to the reagents that customers need to filter.

Aijiren syringe filter membrane use method introduction: before inhaling the sample, suck about 1ml of air into the syringe, so as to minimize the liquid residue, suck the sample into the syringe, invert the syringe and clear all the residues on the top Clean, connect the needle filter to the syringe, tighten it gently to ensure a good seal, filter the sample in the syringe and inject it into the sample bottle, and then follow the steps to maximize the recovery rate, remove the filter, and suck air into the syringe, Reconnect the filter head and eject all residual samples.

Aijiren PP syringe filter
Product Model: 25mm,0.22um Sterilization Independent Packaging
Application: sterilize and filter the aqueous solution
Operating temperature: 45¡ãC
Inlet pressure: bar (psi): 5.2 (75)
Wettability: hydrophilic
Filter membrane diameter: 25mm
Membrane aperture: 0.22um

Another way to determine the micron size of columns, 0.45 um for >3 um, and 0.22 um for <3um. 0.45 um membranes are typically used for general filtration and particle removal while 0.2/0.22um membranes, or sterilizing-grade membranes, are most commonly used for solution sterilization (bacteria removal).

Syringe filter is a disposable filter unit designed to remove impurities from liquids or gases using a syringe as the fluid delivery system.
It consists of a plastic housing with an inlet and an outlet, and a filter membrane positioned between them.
The filter membrane is often made of materials such as polypropylene, polytetrafluoroethylene (PTFE), or nylon.
To use a syringe filter, the liquid or gas to be filtered is drawn into a syringe, and then the syringe is attached to the inlet of the syringe filter.

Use a disposable filter and a disposable sterile syringe to filter and sterilize, first suck the solution to be filtered into the syringe, and then pressure the solution into the sterile container under the filter (which contains a filter membrane with a pore size of 0.22 microns) ,This is done. If the amount of solution to be filtered is large, you can purchase a filter device with a pump.

PTFE is a hydrophobic membrane that is chemically resistant to almost all solvents. It can be used with corrosive media, such as strong acids, alcohols, alkalis, and aromatics. The unit is readily available, allowing simple, fast and reliable HPLC or GC analysis of ultra-clean small-volume samples. PTFE filters can also be used to prevent moisture from passing through the vents.

Sterile Syringe filters wholesale for hplc

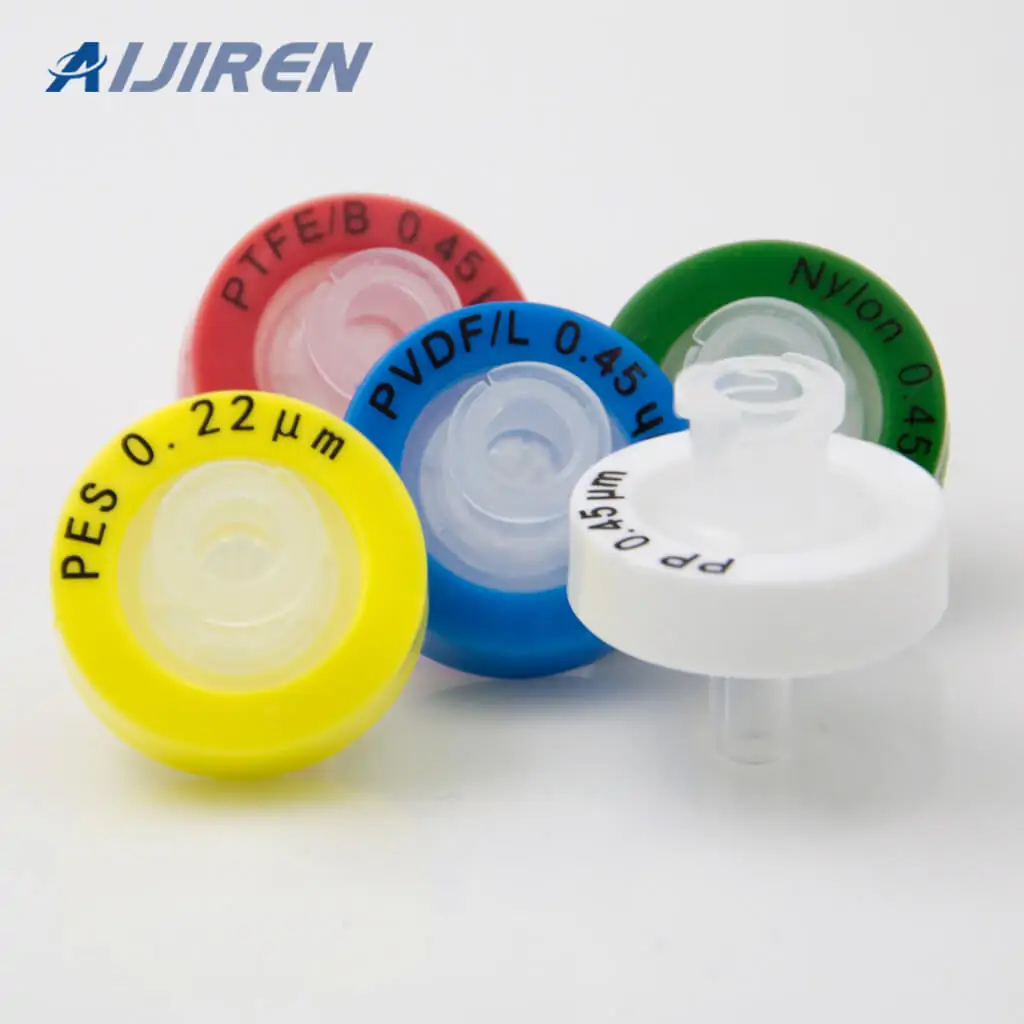

membrane: ptfe, pvdf, mce, pes, ca, etc
Diameter: 25mm / 13mm, pore size: 0.22um, 0.45um

Aijiren¡¯s PP syringe filter uses a hydrophobic polypropylene membrane, which has stable physical and chemical properties, good compatibility, low protein adsorption, and is suitable for filtration of aqueous solutions and most solvents. Commonly used to filter biological samples, solvents, deionized water and reduce biological load, the hydrophobic PP filter membrane is particularly good for gas filtration. The product was sterilized by dry heat at 121¡ãC for 15 minutes.

Aijiren Syringe Filters is a comprehensive range of non-sterile disposable syringe filters for reliable sample preparation. Reproducible membrane quality and automated manufacturing processes ensure particulates are removed from each and every sample, extending analytical column lifetime and minimising injection port or valve damage.

Syringe filters are made of many different types of materials. Various materials, diameters, pore sizes, and sterile and non-sterile options are on our list. These syringe filters provide excellent microfiltration performance for HPLC, water treatment, environment, biotechnology, beverage, food, pharmaceutical and other related fields.

The PES film is sealed in the polymer shell without the use of any adhesive. Each unit can provide ETO or Gamma radiation disinfection, and ensure that there is no pyrogen.

Aijiren’s expert staff is available via live chat and email to help you decide on the best membrane filter for your needs. Email us, and our helpful customer representatives will respond promptly¡ªin just one business day or sooner. And if you still need help deciding on the right product, we¡¯ll ship you a sample to ensure you receive the best membrane filter for your needs.

Although Aijiren has attractive prices, the focus is still on quality. The membrane materials are provided by the most famous people in the industry, and in the ISO9000 certified production process, the latest manufacturing technology is used, and the production is carried out under the highest standard under certified clean room conditions to ensure high quality and stable products. . All syringe filters are HPLC certified.

The nylon membrane of the syringe filter should be compatible with the chemical characteristics of the sample. The nylon membrane should be compatible with various water-based and organic solvents. The membrane should also have high resistance to HPLC solvents and chemicals. The 0.45mm aperture ensures that you have enough capacity and throughput to process samples efficiently and quickly.

Compared with Nitrocellulose membrane (NC membrane), PVDF membrane has many advantages. PVDF membrane has high mechanical strength, is not easy to break or curl; it has the advantages of low background, wide solvent compatibility, and excellent coloring ability; in addition, PVDF membrane can be repeatedly tested after proper treatment.

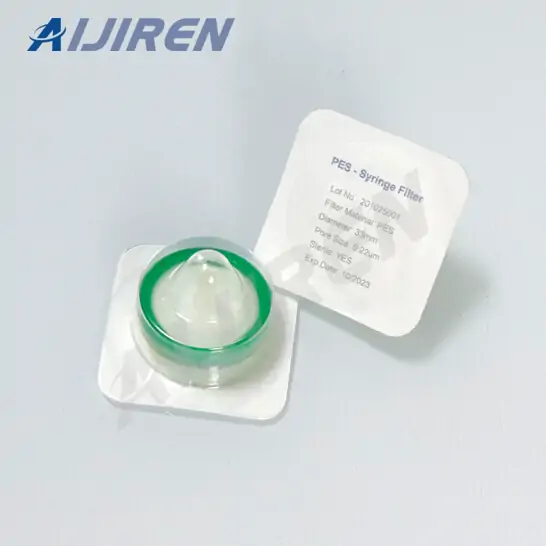

Aijiren sterile PES syringe filter
100% integrity test, individual packaging, gamma radiation
Diameter: 13mm, aperture: 0.45um, 100/pack
In line with ISO certification, quality is guaranteed
Applications: Preparation of tissue culture media, sterile filtration and clarification of biological fluids, probe solutions, protein and enzyme filtration, hybridization buffers, etc.

Our expert staff is available via live chat and email to help you decide on the best membrane filter for your needs. Email us, and our helpful customer representatives will respond promptly—in just one business day or sooner. And if you still need help deciding on the right product, we’ll ship you a sample to ensure you receive the best membrane filter for your needs.

In HPLC analysis, the particle size of the chromatographic column packing is small and easily blocked by contaminant particles. Therefore, samples and solvents must be pre-filtered to remove particulate contaminants and protect the instrument.
In addition, chromatography commonly used in environmental analysis requires that no inorganic contaminants be introduced during sample pretreatment.

Product applications: water purification, HPLC sample preparation, mobile phase solution filtration, cell culture, microbial filtration or sampling, protein precipitate removal, particle removal and monitoring, QC analysis, content consistency, dissolution testing, environmental sampling, food analysis. Generally speaking, 0.45 ¦Ìm pore size is suitable for removing particles from samples or the mobile phase solution of chromatography equipment, and 0.22 ¦Ìm is suitable for filtering microorganisms.

The syringe filters are designed for easy and efficient filtration of liquids and gases. They feature a syringe-like structure with an inlet and outlet, allowing for direct attachment to a syringe or other fluid delivery systems. The filters remove particulates, microorganisms, and unwanted substances, ensuring clean and clarified samples for analysis.

Polypropylene is compatible with acetone, ethyl acetate, methanol, isobutanol, methanol and methyl ethyl ketone. Polypropylene is incompatible with cyclohexane, ether, dichlorobenzene, pentane, methylene chloride and trichlorobenzene. It is recommended to use gas, disinfectant or autoclave to sterilize products made of polypropylene. The maximum operating temperature is 135¡ãC.

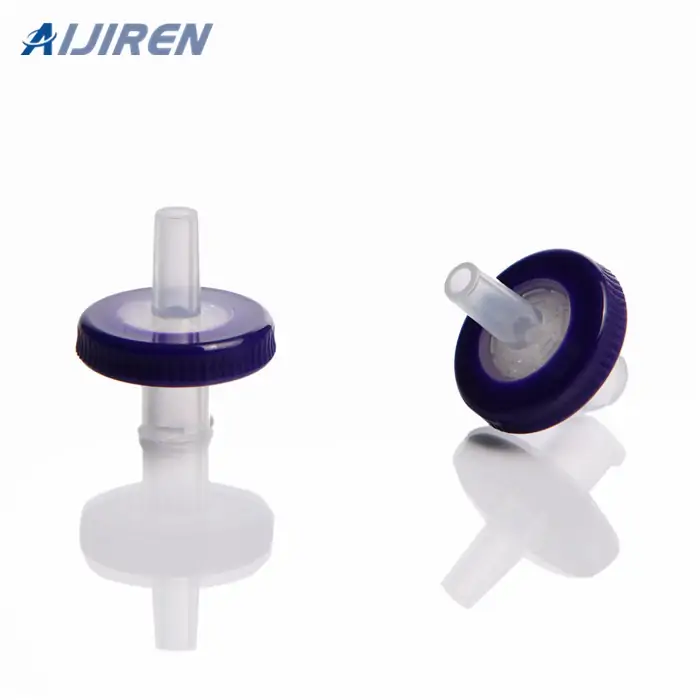

Cellulose Acetate Syringe Filter Surfactant-free membrane for cleanliness in downstream applications, Filter type printed on the filter for ease of identification, Convenient, larger pack sizes,Gamma sterilised.
