13-33mm PES Syringe Filter

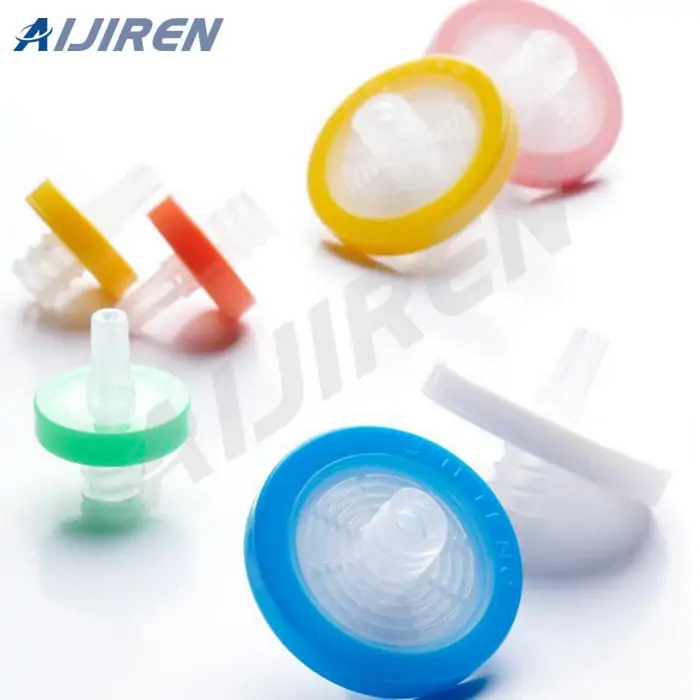

With PES syringe filter membrane mechanically strong character, it can handle high-temperature liquids, with great flow rate (better than PTFE), and low protein binding. With these features, PES syringe filters offer superior performance for use with biological samples and media culture. Workable pH range ~3-14.
Nylon: Nylon membrane filters are hydrophilic, flexible, tear-resistant, and autoclavable. They are resistant to a range of organic solvents and suitable for use with high pH samples. Nylon binds proteins. Unsuitable for acidic solutions. pH range ~3-14.

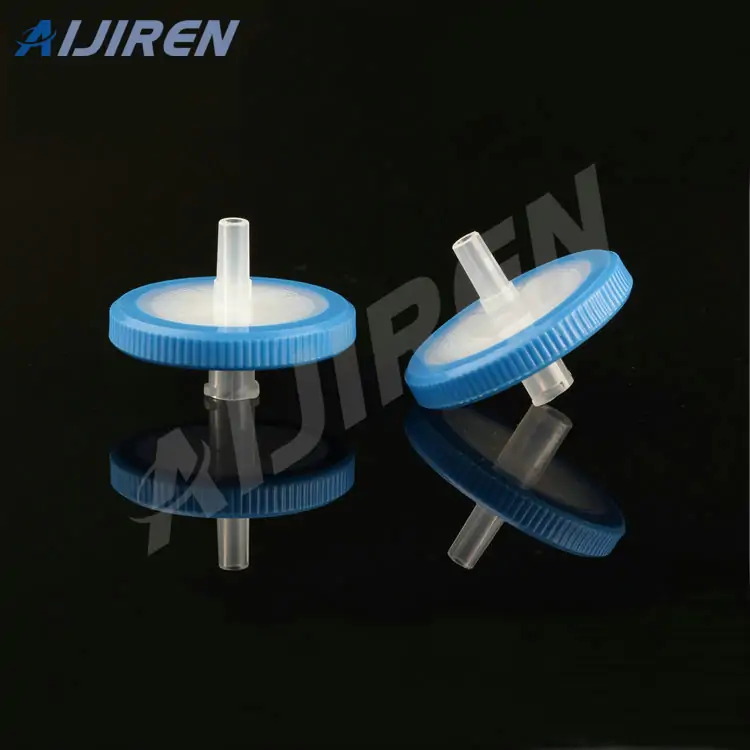

MCE (Mixed Cellulose Ester) syringe filters are an ideal choice when biological samples are involved. Mixed Cellulose is a hydrophilic membrane offering both low protein binding coefficients and exceptional flow rates.

In HPLC analysis, the particle size of the chromatographic column packing is small and easily blocked by contaminant particles. Therefore, samples and solvents must be pre-filtered to remove particulate contaminants and protect the instrument.

The syringe filters are designed for easy and efficient filtration of liquids and gases. They feature a syringe-like structure with an inlet and outlet, allowing for direct attachment to a syringe or other fluid delivery systems. The filters remove particulates, microorganisms, and unwanted substances, ensuring clean and clarified samples for analysis.

The nylon membrane used in the syringe filter has high mechanical strength, chemical stability, can be tolerated by most organic solvents, has very low extractables, has good thermal stability and natural hydrophilicity, and is filtered by most aqueous solutions characteristic.

PTFE Syringe Filter is resistant to almost all corrosive chemicals, which makes PTFE syringe filters an ideal choice. However, the disadvantage of natural hydrophobic PTFE is that after many chemicals are diluted with water, the aqueous solution cannot pass through. Need to be wetted with water in advance.

PVDF syringe filters are made of hydrophilic PVDF membrane and a polypropylene overmold housing. Available in 13 mm and 25 mm diameters and 0.22 μm and 0.45 μm pore sizes.

Chromatography commonly used in environmental analysis requires that no inorganic contaminants be introduced during sample pretreatment. In HPLC analysis and IC analysis, syringe filters can be used to filter sample solutions, which is an important step in sample pretreatment.

The advantages of nylon: 1. Toughness 2. Wear resistance 3. Smoothness 4. Light weight 5. Insect resistance 6. Anti-mold and the material is not easy to generate static electricity, deformation, pilling and ageing.

Aijiren’s CA Syringe Filter 90% is exported to the world’s major economically developed countries. Filters can provide foundry services according to customer needs. The produced filters have good consistency between batches, and there are strict control procedures from raw materials to production processes to in and out of warehouse delivery management to ensure the quality and use value of the products.

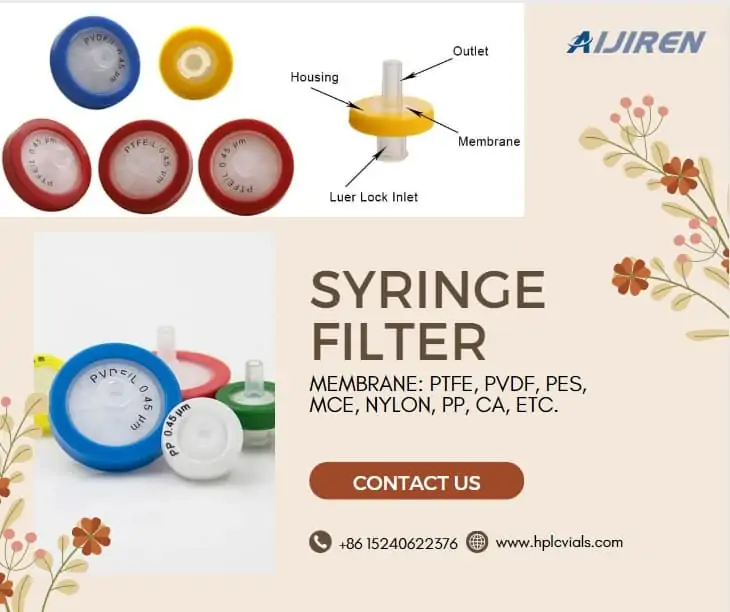

Syringe filter is a small, disposable device used for filtering liquids or gases.It consists of a plastic housing with a membrane filter at one end and a female luer lock or luer slip connection at the other end, which allows it to be attached to a syringe or other fluid delivery system.
Syringe filters are commonly used in laboratory and research settings to remove particles, microorganisms, or other impurities from samples before analysis or further processing. The membrane filter in a syringe filter acts as a barrier, allowing only the desired components of the sample to pass through while retaining any larger particles or contaminants.
The choice of membrane material depends on the nature of the sample and the substances to be filtered.

Use Aijiren CA syringe filter to remove interfering substances and fine particles to the rated pore size, thereby obtaining a cleaner sample extract. Cellulose acetate (CA) syringe filters are ideal for filtering tissue culture media and filtering sensitive biological samples. Adding a syringe filtration step before chromatographic injection not only helps to ensure more consistent and reliable results, it also helps protect the instrument and extend the life of the column. Economical choice Syringe filters are available in a variety of sizes and membrane types to meet the needs of any application.

Aijiren’s syringe filters and vials reduce HPLC sample preparation time and the use of consumables, and the track-etched membrane is also essential for extruding liposomes for encapsulation and targeted drugs.

Hydrophilic PTFE syringe filters offer a choice for aqueous samples that are diluted with harsh chemicals. These filters can handle high-temperature liquids, excellent flow rates, low protein binding, and are compatible with most bases, acids and organic solvents.

Cellulose acetate is a very low protein binding membrane that is ideal for aqueous based samples and biological samples. It is a lower protein binder than either polyethersulphone or PVDF membranes, but has a lower chemical resistance than regenerated cellulose (RC). CA is a strong membrane mechanically and hydrophilic.

Syringe Filters with hydrophobic PTFE membranes can be used for filtration of strong solvents, acids and alkalis. Not suitable for filtration of aqueous liquids. Filters with hydrophilic PTFE can be used for filtration of strong solvents, acids and alkalis. However, these syringe filters can also be used for the filtration of aqueous liquids, which makes this type very versatile.

The syringe filters are available in various pore sizes and membrane materials to accommodate different filtration requirements. They are suitable for a wide range of laboratory applications, including sample preparation, clarification, and sterilization. The filters provide reliable performance and consistent filtration results, contributing to accurate and reproducible data in analytical chemistry, microbiology, and other fields.

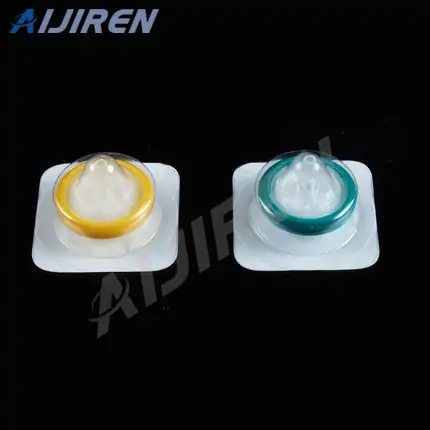

The Sterile syringe filter produced by Aijiren is a single-use membrane-based filtration facility that is mostly used to remove particulate impurities from liquid and gas samples before analysis by HPLC, ion chromatography, gas chromatography, ICP, and dissolution testing methods. . Correctly filtering samples in chromatographic experiments can improve the quality and consistency of analysis results and reduce instrument downtime. The sterile syringe filter adopts high-temperature aseptic processing and vacuum packaging of liquid to ensure the cleanliness of the syringe filter. It is recommended to be used once.

Aijiren PVDF filters are high defined pore structure, low nonspecific binding, compatible with organic and aqueous solvents. Please note that Hydrophilic PVDF syringe filters are not compatible with majority of strong acids and caustic solutions, such as dimethyl sulfoxide, dimethylformamide (DMF), acetone, ketones, esters, and ethers.

The membrane materials produced by Aijiren are provided by the most famous people in the industry, and in the ISO9000 certified production process, under certified clean room conditions, the latest manufacturing technology is used to ensure high-quality and stable products to achieve the highest standards . All syringe filters are HPLC certified.

Aijiren Syringe Filters is a comprehensive range of non-sterile disposable syringe filters for reliable sample preparation. Reproducible membrane quality and automated manufacturing processes ensure particulates are removed from each and every sample, extending analytical column lifetime and minimising injection port or valve damage.

Syringe filter is a small, disposable device that is commonly used in laboratory settings to filter or clarify fluids. It is designed to be attached to the end of a syringe and acts as a barrier that removes particles and contaminants from the fluid as it is forced through the filter.
Syringe filters typically consist of a plastic housing with a membrane filter inside. The housing has a female luer lock or luer slip connection that allows it to be securely attached to the syringe. The membrane filter, which is the key component, is made of a porous material that allows the fluid to pass through while retaining particles and contaminants above a certain size.

The advantages of Syringe Filter: The low extractable membrane and shell ensure that no filter contaminants are added to your samples. Aijiren performs performance tests under actual HPLC conditions. The integrated 1mm borosilicate glass prefilter (30mm device) ensures higher confidence in samples with high solids content.

In order to filter the particles correctly, you need to find the right size filter. You should choose the diameter of the filter carefully. They usually have sizes of 13mm, 25mm and 30mm. Each of these has a different ability to hold particles. According to the sample size, you can choose the appropriate filter diameter. For example, a diameter of 13 mm can be used for 1-10 ml samples. Similarly, 25 mm PVDF syringe filters can be used for sample volumes of 10-100 ml. Their retention is less than 100 ml.

Our syringe filters are high quality, packaged and sold at fair competitive prices. They are available in most of the major membrane materials including nylon, PTFE, PES, MCE, PVDF, CA, PP, and GF, and are available in 13mm, 17mm, 25mm and 30mm formats for virgin polypropylene housings.

In HPLC analysis, the particle size of the chromatographic column packing is small and it is easy to be blocked by impurity particles. Therefore, samples and solvents need to be filtered in advance to remove particulate contaminants and protect the instrument. Ion chromatography, which is commonly used in environmental analysis, also requires that no inorganic pollutants be introduced in sample pretreatment.

Aijiren’s PVDF syringe filter has hydrophilicity and good chemical compatibility. They can bring precision to your research and ensure the highest level of performance. Our filter series are designed with female Leur-lock inlet and male Leur-slip outlet. In addition, these filters have better mechanical resistance and can withstand high temperatures.
