PES Yellow Syringe Filter

Another way to determine the micron size of columns, 0.45 um for >3 um, and 0.22 um for <3um. 0.45 um membranes are typically used for general filtration and particle removal while 0.2/0.22um membranes, or sterilizing-grade membranes, are most commonly used for solution sterilization (bacteria removal).

The nylon membrane used in the syringe filter has high mechanical strength, chemical stability, can be tolerated by most organic solvents, has very low extractables, has good thermal stability and natural hydrophilicity, and is filtered by most aqueous solutions characteristic.

1.ISO9001 approved
2.Imported from Germany and US to ensure high quality
3.Manufactured in 100,000 class cleaning room
4.Wide range size and customized.
5.OEM service available
6.Low backfround response
7.Board membrane choice with excellent compatibility with aqueous , organic solvent or their mixtures.

Nylon has excellent flow characteristics, extremely low extractable level and mechanical stability, and can provide the best combination of physical parameters to meet the most stringent analysis requirements of 13mm, 25mm and 33mm diameters. Nylon’s natural hydrophilicity, high protein binding capacity and high dirt adsorption capacity are natural advantages.

Feature and benefits: 0.2 ¦Ìm hydrophobic air filters are excellent industrial air filter media. Testable by water break through (WBT) test or bubble point testing.Passes USP Class VI biosafety tests for plastics. Manufactured in clean room facilities. Range of filtration areas from 4¨C2000 cm2 to support filtration volumes as small as one liter and as large as a large tank vessel

The Syring Filter with nylon membrane produced by Aijiren has good hydrophilicity, acid and alkali resistance, and oxidation resistance. It is not only suitable for aqueous solutions containing acids and alkalis, but also for organic solvents such as alcohols, hydrocarbons, lipids, phenols, ketones and other organic solvents. It can be used for organic solvents such as strong acid, 70% ethanol, dichloromethane and so on. High temperature resistance, good strength, stable chemical properties.

The nylon membrane of the syringe filter should be compatible with the chemical characteristics of the sample. The nylon membrane should be compatible with various water-based and organic solvents. The membrane should also have high resistance to HPLC solvents and chemicals. The 0.45mm aperture ensures that you have enough capacity and throughput to process samples efficiently and quickly.

Our expert staff is available via live chat and email to help you decide on the best membrane filter for your needs. Email us, and our helpful customer representatives will respond promptly—in just one business day or sooner. And if you still need help deciding on the right product, we’ll ship you a sample to ensure you receive the best membrane filter for your needs.

Cellulose Acetate Syringe Filter Surfactant-free membrane for cleanliness in downstream applications, Filter type printed on the filter for ease of identification, Convenient, larger pack sizes,Gamma sterilised.

Hydrophilic PTFE syringe filters offer a choice for aqueous samples that are diluted with harsh chemicals. These filters can handle high-temperature liquids, excellent flow rates, low protein binding, and are compatible with most bases, acids and organic solvents.

The MCE membrane filter provides researchers with the lowest combined filter. Due to their extremely low binding characteristics, these filters provide higher throughput than competing products and reduce filter replacement when filtering protein solutions.

The syringe filters are designed for easy and efficient filtration of liquids and gases. They feature a syringe-like structure with an inlet and outlet, allowing for direct attachment to a syringe or other fluid delivery systems. The filters remove particulates, microorganisms, and unwanted substances, ensuring clean and clarified samples for analysis.

The PVDF Syringe Filter produced by Aijiren is made of high-quality raw materials. The filter membrane is very suitable for sample preparation and reagent filtration. Aijiren believes that the PVDF Syringe Filter can be integrated with water-based reagents, and the hydrophilicity ensures that the PVDF Syringe Filter can filter water-based reagents. success.

The PTFE Syringe Filter in the picture has an aperture of 0.22, an outer diameter of 25mm, and a purple color. Aijiren also offers many other colors of Syringe Filter, such as yellow, pink, blue, green, etc. Customers can choose according to their preferences . The Syringe Filter produced by Aijiren can be equipped with many different types of filter membranes, which can be selected according to the reagents that customers need to filter.

Membrane: ?ICP Certified PES (Polyethersulfone)??
Use with: ?Strong bases, alcohols, proteins, peptides
Don¡¯t use with: ?acids, ketones, esters, halogenated or aromatic hydrocarbons.
Sterilization: ?Syringe filters can be sterilized by autoclave at 125¡ã for 15 minutes.
Applications: ?Ion chromatography, tissue culture filtration, filtration of proteins and nucleic acids, high-temperature liquids.

13mm, 25mm 0.22um, 0.45um hydrophobic PVDF (polyvinylidene fluoride) membrane syringe filter is a filtration device commonly used in laboratory settings to remove particulates and microorganisms from fluids.
It’s important to note that specific details of hydrophobic PVDF membrane syringe filters, such as pore size, diameter, and filtration capacity, can vary between manufacturers and product lines.
Therefore, it’s recommended to consult the product specifications or contact the supplier for precise information about the syringe filters you are considering for your specific application.

PTFE Syringe Filters consist of a polytetrafluoroethylene (PTFE) membrane and a polypropylene overmolded housing. Available in 13 mm and 25 mm diameters and 0.22 μm and 0.45 μm pore sizes. PTFE is the membrane of choice for use with aggressive solvents, liquids, and gases that can attack other membranes.

Syringe filter is a disposable device used in laboratory settings to filter small volumes of liquid samples. It is commonly utilized to remove particulate matter and microorganisms from solutions before analysis or to protect sensitive instruments from contamination.
Syringe filters consist of a plastic housing with a membrane filter at one end and a female luer lock or luer slip connection at the other end. The filter membrane is typically made of materials such as nylon, polyethersulfone (PES), polytetrafluoroethylene (PTFE), or cellulose acetate.

Syringe filters are a fast, convenient and reliable filter tool that is routinely used in laboratories. No need to replace membranes or clean filters, which eliminates the need for complex and time-consuming preparations. Widely used in pre-sample filtration, particle removal, and aseptic filtration of liquids and gases. This method is suitable for rinsing small samples before loading into HPLC and GC, and is often used in disposable syringes.

UHPLC Precolumn Filter
• Economical protection against microparticles.
• Extend UHPLC column lifetime.
• Negligible effect on column performance.
• Universal fit—easily connects directly to any brand column.
• Leak tight to 15,000 psi (1,034 bar).
• Does not contribute to system backpressure.
• Does not contribute to band broadening.

Membrane materials are supplied under the industry’s best names, and ISO9000 certified manufacturing uses the latest manufacturing technology to ensure high quality and consistent products, performed to the highest standards in certified cleanroom conditions. All syringe filters are HPLC certified.

Syringe filter is a disposable filter unit designed to remove impurities from liquids or gases using a syringe as the fluid delivery system.
It consists of a plastic housing with an inlet and an outlet, and a filter membrane positioned between them.
The filter membrane is often made of materials such as polypropylene, polytetrafluoroethylene (PTFE), or nylon.
To use a syringe filter, the liquid or gas to be filtered is drawn into a syringe, and then the syringe is attached to the inlet of the syringe filter.

In HPLC analysis, the particle size of the chromatographic column packing is small and easily blocked by contaminant particles. Therefore, samples and solvents must be pre-filtered to remove particulate contaminants and protect the instrument.

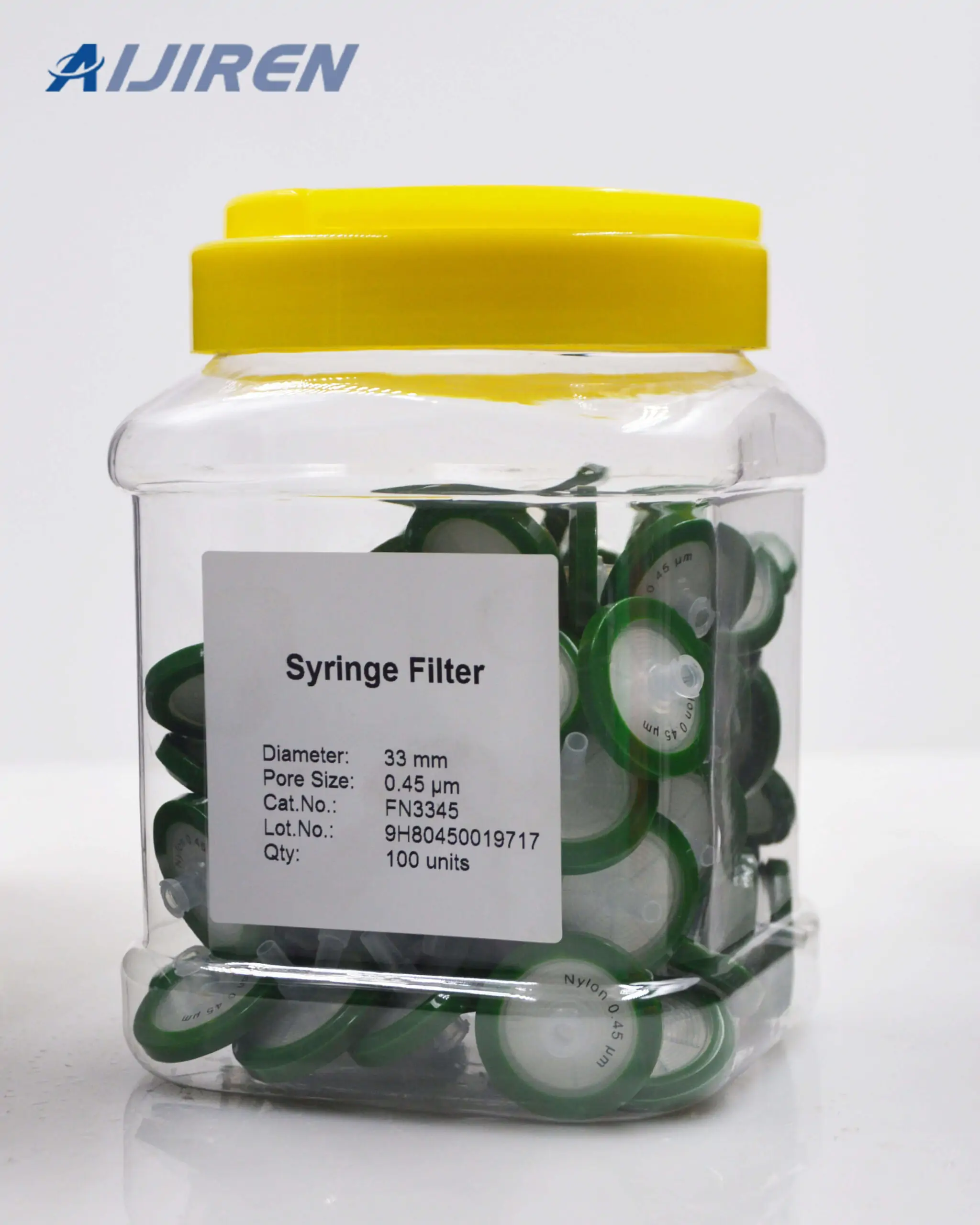

Aijiren’s Syringe Filter is usually 100pcs/pack. Generally speaking, it is packaged in a plastic box. If the Syringe Filter is packaged in a plastic box, the Syringe Filters will not squeeze each other. The recommended minimum order quantity is 30 boxes.

In HPLC analysis, the particle size of the chromatographic column packing is small and it is easy to be blocked by impurity particles. Therefore, samples and solvents need to be filtered in advance to remove particulate contaminants and protect the instrument. Ion chromatography, which is commonly used in environmental analysis, also requires that no inorganic pollutants be introduced in sample pretreatment.

Designed to be compatible for the use on all common automated filtration systems, Standard syringe filters are color coded. Aijiren syringe filters are labeled for method validation and certification. All syringe filters are autoclavable (121 ¡ãC and 1.1 bar for 30 min).

PTFE is a hydrophobic membrane that is chemically resistant to almost all solvents. It can be used with corrosive media, such as strong acids, alcohols, alkalis, and aromatics. The unit is readily available, allowing simple, fast and reliable HPLC or GC analysis of ultra-clean small-volume samples. PTFE filters can also be used to prevent moisture from passing through the vents.
