9–425 Screw/ Amber HPLC/GC vial with septa

Aijiren’s Sample Storage Vial is mostly used for environmental analysis,Sample Storage Vial is often used to store samples for experimental analysis. Aijiren uses high-quality borosilicate hydrochloric acid glass to make Sample Storage Vial to ensure that samples can be stored well without affecting the quality of the samples.

Mainly used in the following aspects: HPLC sample preparation; conventional QC analysis; content uniformity; removal of protein precipitates; dissolution test; food analysis; biofuel analysis; environmental samples

Aijiren Crimp Aopsample vials have excellent sealing performance, which can effectively avoid sample evaporation. The sample vial and the corresponding 11 mm aluminum cap can be easily combined with the crimp capping tool. The vial can withstand heat and pressure, and can also be used for chemical reactions.

Aijiren’s 18mm Screw Top Headspace Vial is available in 10ml, 20ml, amber glass and clear glass. And the caliber of Headspace Vial is Screw thread, which is convenient for sealing and opening the headspace bottle. At the same time, the Screw Top Cap of Aijiren’s Headspace Vial has a center hole, which is convenient for the automatic injection needle to enter and exit. The thickness of Septa is easy to pierce and has a tight seal.

Brand: Aijiren
Mouthful capacity: 2.0ml
Material: made of grade 1 hydrolyzed glass
Color: brown
Whether OEM processing: Yes
Packing: 100 pcs/box, packed in PP plastic pallet box

Use Aijiren CA syringe filter to remove interfering substances and fine particles to the rated pore size, thereby obtaining a cleaner sample extract. Cellulose acetate (CA) syringe filters are ideal for filtering tissue culture media and filtering sensitive biological samples. Adding a syringe filtration step before chromatographic injection not only helps to ensure more consistent and reliable results, it also helps protect the instrument and extend the life of the column. Economical choice Syringe filters are available in a variety of sizes and membrane types to meet the needs of any application.

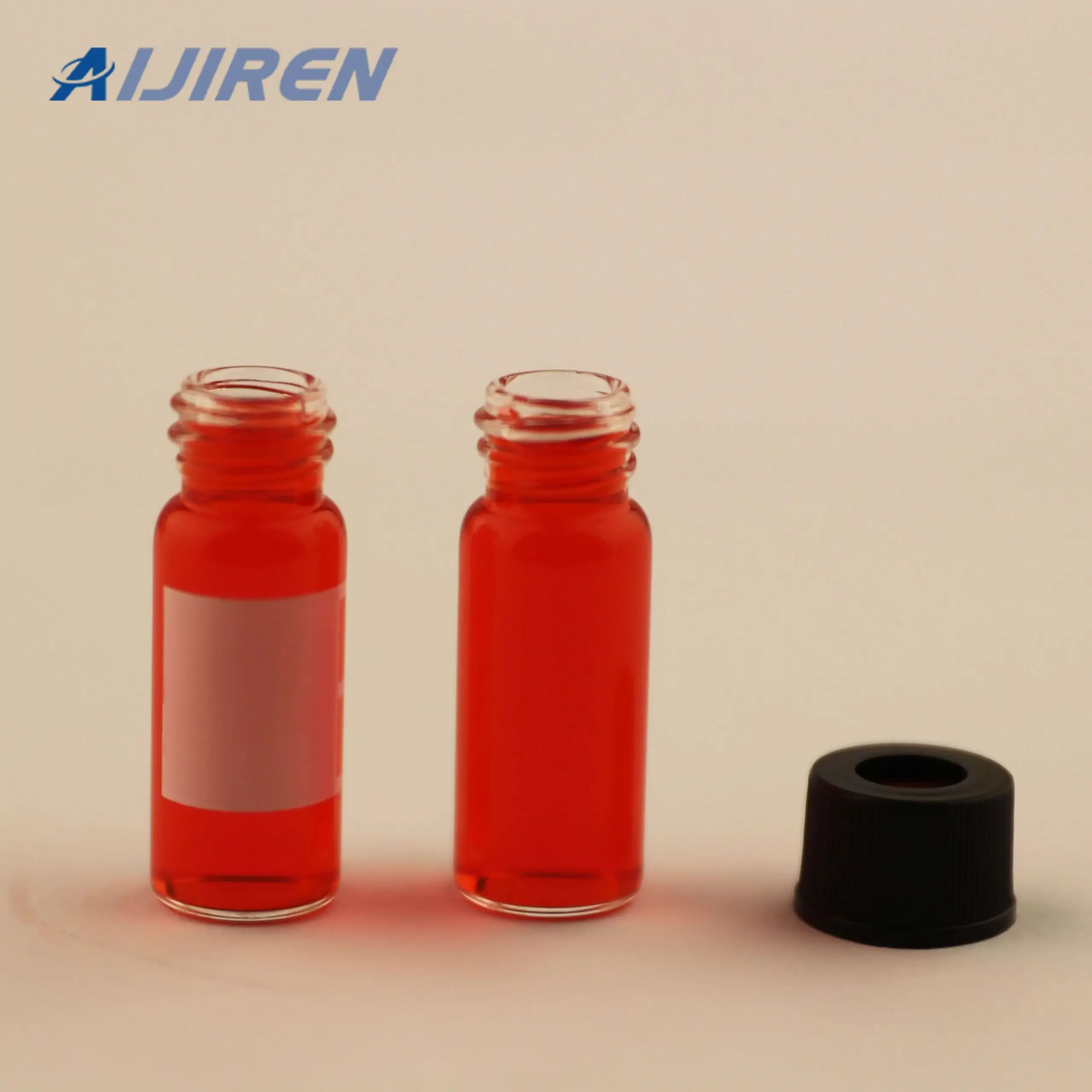

The 8mm hplc vial is a standard sample vial for GC/HPLC, designed for various autosamplers that require narrow-mouth sample vials. Sample vials are preferentially used for instruments of the following manufacturers: Beckman, CTC, Gilson, Knauer, Shimadzu, Spark, Varian, VWR (Merck?) / Hitachi, etc.

Aijiren has always insisted on using high-quality glass, because only the quality of the glass is high enough to be compatible with more samples and more convenient for customers to experiment. Therefore, Aijiren decided on borosilicate glass after various comparisons. This glass is not only resistant to high temperature and corrosion It is also inert and not easily broken, which is very suitable for large-capacity 60ml sample storage vial.

Crafted with precision from high-quality borosilicate glass, our 18mm 20ml Screw Headspace Vial ensures excellent thermal stability and chemical resistance. The vial’s robust construction guarantees sample integrity, enabling accurate analysis of volatile compounds for reliable results.

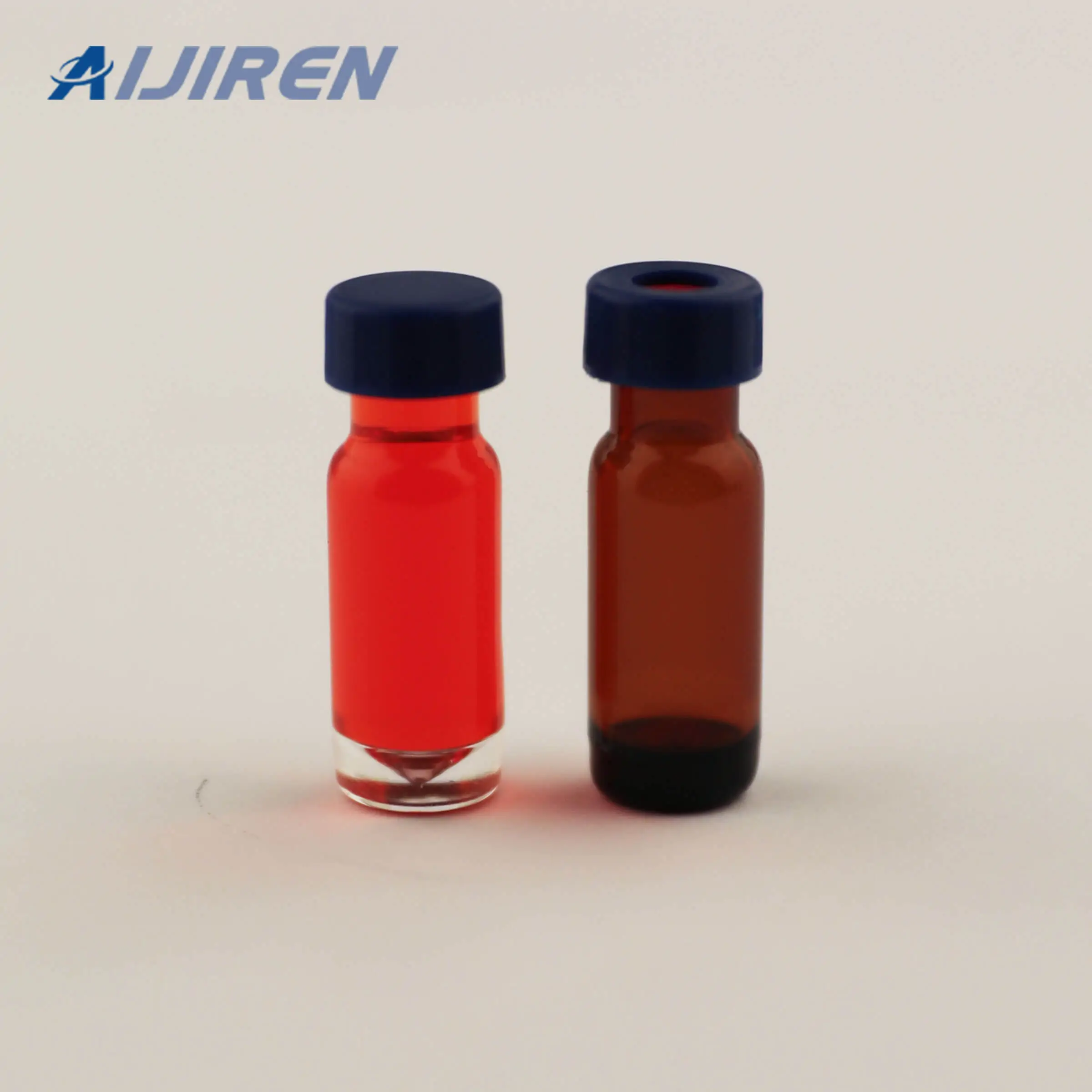

9mm vial micro insert is used to ensure the most accurate and reliable analysis of your lab samples. Micro Inserts allow for maximum sample recovery and easier sample removal when combined with hplc autosampler vials.

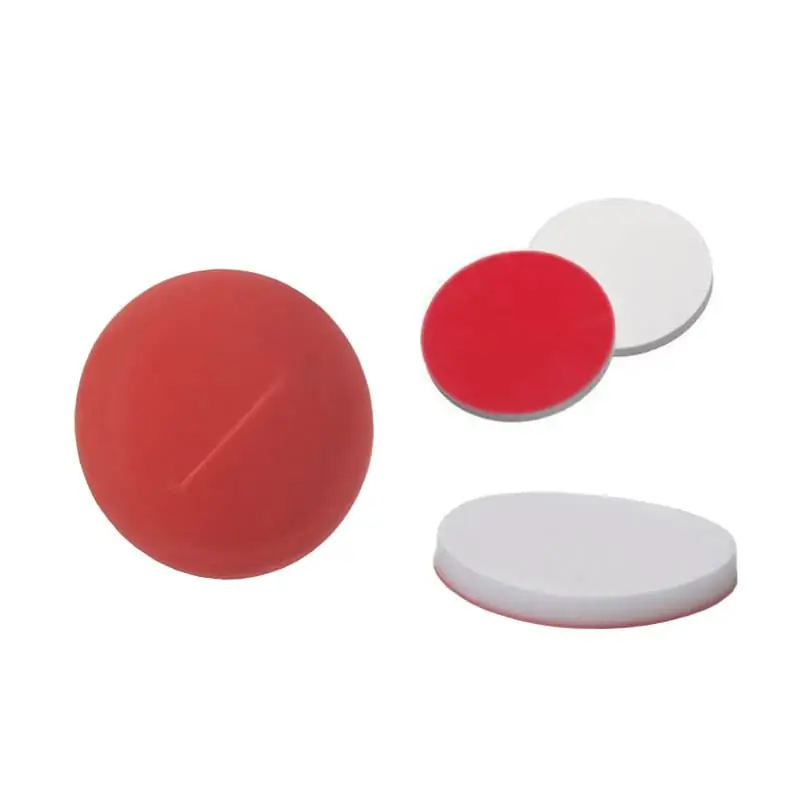

Aijiren’s Septa made of high-quality raw materials can protect the seal inside the Vial to a certain extent, and will not break or fall off the cap after the automatic injection needle is punctured. This is to a large extent. Gas chromatography experiments provide convenience, and bring safe and accurate results.

The Clear Glass Crimp Top Vial produced by Aijiren has a specification of 11.6*32mm. Customers can choose either 5.0type or 7.0type. The 7.0type is more stable and of course the price is higher. Both 5.0type and 7.0type can be engraved with label area.

If the weight, damage, surface inertness, and/or disposal costs of the glass vial are concerned, the vial manufactured from polypropylene is an alternative to consideration. The benefits of polypropylene materials include low extraction rates, compatibility with many solvents, ideal for working with proteins, ideal for ion chromatography applications, ideal for pH-sensitive sample storage, and eliminate the need for inserts during microsampling.

Instructions for use and precautions:
1. It must be used with disposable syringes and glass syringes. The interface is standard. Put the needle filter on the syringe first, then pour the liquid into the syringe, press the push rod down, and collect the filtered liquid.
2. Do not use a syringe smaller than 10cc, because the small-volume column may cause the pressure to exceed the upper limit and cause damage to the filter membrane.
3. Only for laboratory use, one-time use, non-renewable.
4. The filtrate at the beginning of the part should be discarded. The volume is about the dead volume of the filter. Taking 25mm as an example, discard the first 1mL filtrate; or pre-clean the filter with 1 to 2mL of solution.

There are two types of 24mm Screw neck Cap, center hole and closed-top. The cap with center hole can be more convenient for sample injection. The closed top can store samples and has better sealing. It can have its own for 20ml-60ml. Storage range and capacity.

The Crimp Top headspace vials are made of borosilicate hydrochloric acid. It has a transparent and amber color and can withstand a temperature range of -60 to 200 degrees Celsius. Generally speaking, the volume of the headspace vial is 10-20ml, and the characteristic is 22.5*46/75mm. The performance is acid resistance, alkali resistance and high temperature resistance. Packaging usually adopts inner packaging shrink plastic box.

There are two types of packaging for 20mm Crimp Top Closures produced by Aijiren, one is packaged in plastic bags, the other is packaged in threaded plastic cans, and the quantity is 100 per bag/can. Aijiren is packaged in cans. Because 20mm Crimp Top Closures are easily squeezed and deformed during transportation, which affects the sealing effect in the experiment, they are packed in cans.

Storage glassware manufactured in Type 1, Class A, 33 expansion borosilicate glass or 51A amber glass
Capacity ranges from 2mL to 40mL
Provide constant pH for duration of sample storage life
Chemically inert caps suitable for most chromatography and storage applications
Top grade PTFE/silicone septa used for cleanliness
