Borosilicate Glass 20ml GC headspace vial for Gas chromatography

Material: USP1, Borosilicate Glass
10ml Precision Screw Neck 18mm Diameter
Color: Clear / Amber
Bottom: Round Bottom
Vial Size: 22.5*46mm

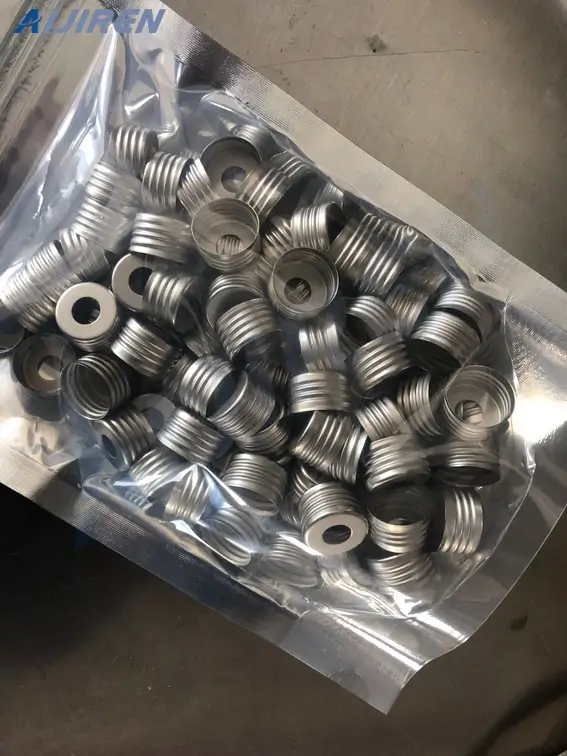

Cap: 18mm Magnetic Precision Screw Metal Cap
Septa: PTFE/Silicone 17.5*1.3-1.5mm
PTFE/Transparent Silicone Septa 1.3mm for SPME

A solid disk of PTFE offers superior chemical inertness against the most aggressive solvents. The thin membrane allows for easy penetration by most needles. PTFE septa are not resealable. They should be used with relatively short cycle times or single injection methods.

Headspace vials are available in clear or amber glass with a round or flat base, a crimp seal with a beveled or square edge finish, or with a screw-thread finish. Headspace vials, septum, and caps can be purchased in various quantities separately or together as convenience kits to fit your laboratory needs.

Aijiren provides Screw Thread Headspace Vial always be applied to Aijiren, Shimadzu, Tekmar, CTC PAL, Varian, Gerstel, Atas, Thermo Scientific autosamplers. Aijiren’s Screw Thread Headspace Vial are all round bottom, this is because A rounded bottom is more sturdy and thus more resistant to the high pressure within the vial during the heating process.

The material of Headspace Vials is low extractable Borosilicate glass with low expansion rate, high-temperature resistance, high strength, high hardness, high light transmittance and high chemical stability. Headspace Vials suitable for headspace analysis of volatile solids and gases.

Headspace vials are available in clear or amber glass with a round or flat base, a crimp seal with a beveled or square edge finish, or with a screw-thread finish. Headspace vials, septum, and caps can be purchased in various quantities separately or together as convenience kits to fit your laboratory needs.

The 20mm Crimp Top Caps produced by Aijiren have a diameter of 20mm and a center hole with a diameter of 9.5mm. The color is the silver color of aluminum itself, which is very modern and beautiful. The matched septa are all 20*3mm, and the double-sided synthetic septa ensures the sealing.

Headspace vials can withstand the higher temperatures and internal pressures required for volatile gas analysis. The Color of headspace vials is divided into two kinds of brown and transparent, the brown vials can be protected from light, and the manufacturing process adopts the molding method, which has the characteristics of thick wall, high mechanical strength, and not easy to be broken.

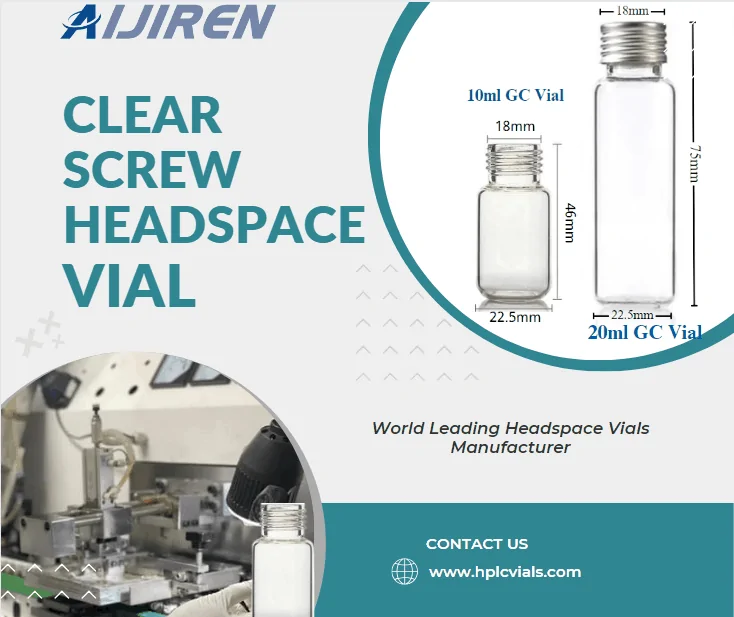

The optional capacity is 10ml 20ml and the specifications are 22.5 x 46mm, 22.5 x 75.5mm, providing both colorless and brown headspace vial. The 20ml GC Analysis Headspace Vial Series strictly controls the HPLC vial mouth to improve sealing performance. Precision molding bottlenecks increase the processing power of autosamplers.

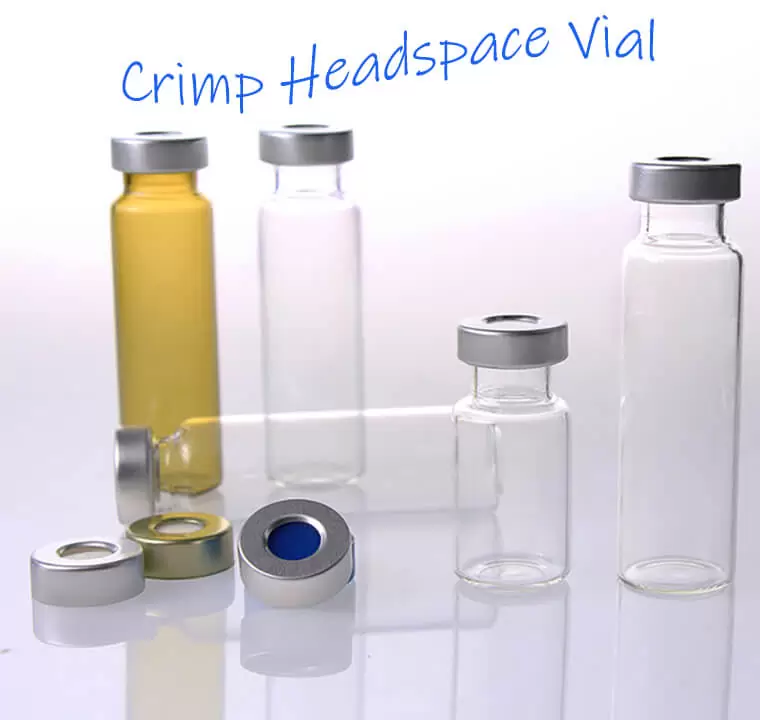

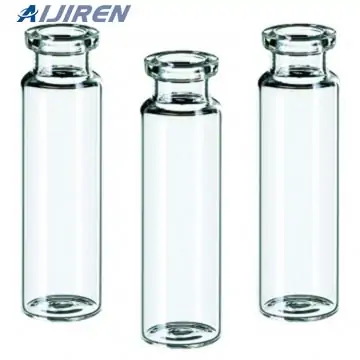

20mm crimp-top headspace borosilicate glass vial is a specific type of vial used in headspace analysis, a technique commonly employed in gas chromatography (GC). These vials are designed to store and analyze samples for volatile compounds.
Headspace analysis involves the sampling and analysis of the vapor phase above a sample, typically done to analyze volatile compounds that can be released from solid or liquid samples.
The headspace vials are specifically designed to withstand the increased pressure and temperature conditions associated with this technique.It’s important to note that Headspace vials may also be available with other closure mechanisms, such as screw caps or magnetic caps.

Suitable for 11mm 2ml Crimp Neck Vials & 20mm Headspace GC Vials
Caps Material: Aluminum
Use Together with PTFE/Silicone Septa or Rubber Stopper
Color: Metal Silver
Vial Septa & Rubber Stopper and Crimpers are also Provided

Teflon and silicone rubber or ultra-pure silicone are used as raw materials to ensure that the septa are non-toxic; to ensure excellent functions, it is particularly suitable for gas chromatography, and to ensure that the septum does not fall into the sample vial during the injection process;

Headspace borosilicate glass vials are a type of glass containers designed for storing and analyzing gas samples. They are commonly used in analytical chemistry and the pharmaceutical industry. The term “headspace” refers to the area above the liquid or solid sample in the vial, which contains the gas phase of the sample.
Borosilicate glass is chosen for these vials because it has low thermal expansion properties, making it resistant to thermal stress and thermal shock. This is important because headspace vials are often subjected to heating and cooling during the sampling process.

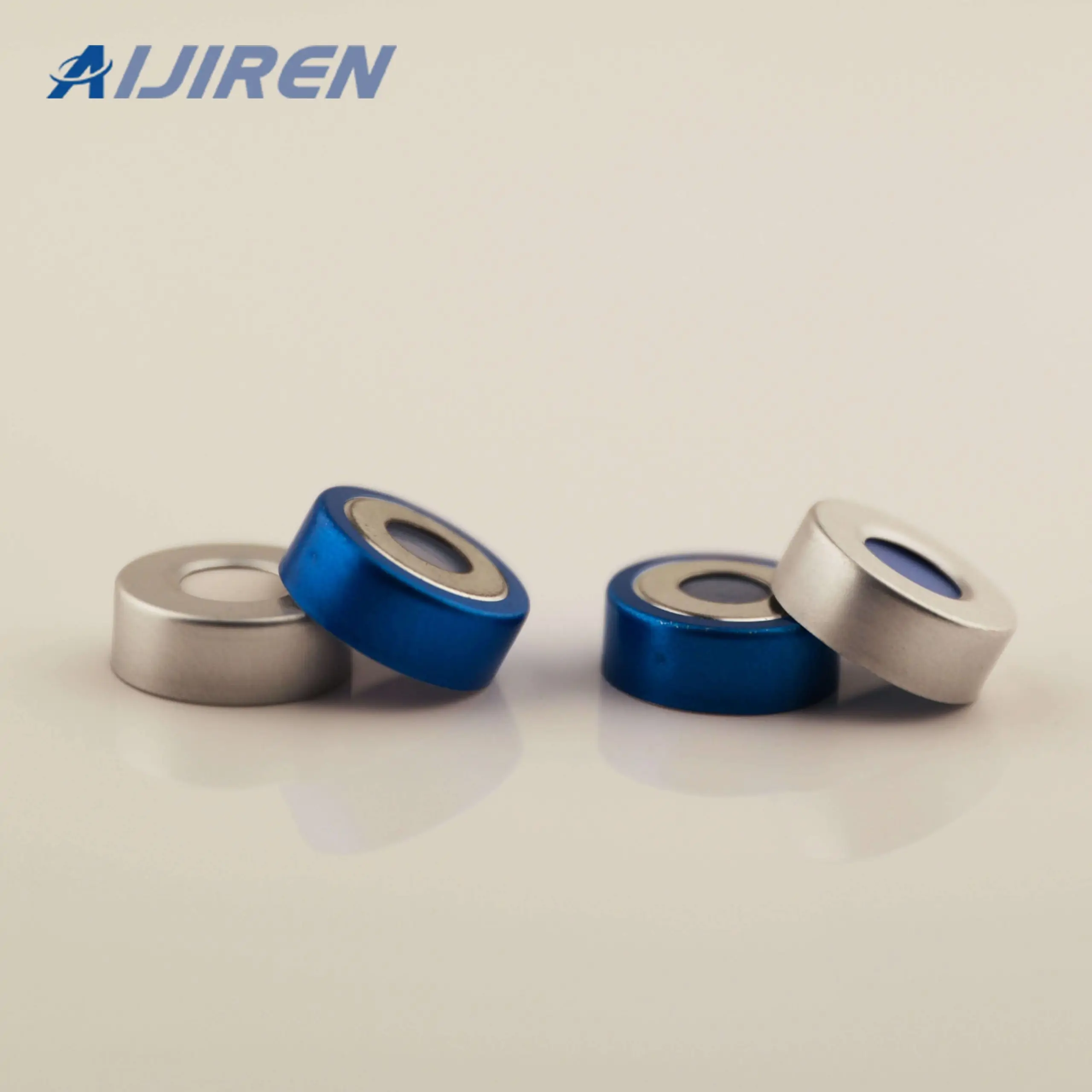

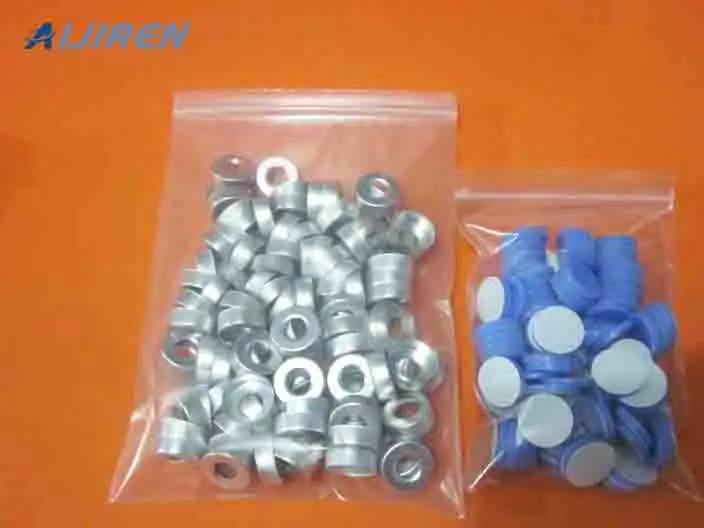

Aluminum Caps for 20mm Crimp-top Vial
9.5mm Centre Hole
Septa: PTFE/ Silicone
Septa Size: 20*3mm

Crimp Caps squeeze the septum between the rim of the glass vial and the crimped aluminum cap. This forms an excellent seal preventing evaporation. The crimp cap vial requires crimping tools to carry out the sealing process.

Headspace vials are common consumables generally used in gas phase experiments. Headspace samples are typically prepared in vials containing sample, diluting solvent, matrix modifier, and headspace.

Headspace vials are common consumables generally used in gas phase experiments.  Headspace vials have different capacity specifications, including 6ml, 10ml, 20ml, etc. Use a standard sample vial to ensure sufficient headspace. Usually, the reserved volume should be at least 50% of the sample volume.

Aijiren is a supplier of laboratory consumables, focusing on the production of 10mL 18mm Screw Thread Headspace Vial for GC. Aijiren has more than ten years of experience in making 10mL 18mm Screw Thread Headspace Vial and is a well-known brand among Chinese laboratory consumable suppliers. Aijiren strives to provide quality service to every customer.

Aijiren Tech Headspace Vial is manufactured to provide uniform glass thickness and ensures uniform thermal distribution for uniform sampling reliability. All Aijiren Tech Headspace Viars meet or exceed OEM manufacturer specifications. AijirenTech Vial is available in 6 ml, 10 ml and 20 ml versions, with screw and crimp types.

Headspace vials are made of Aijiren’s borosilicate glass. You can choose from clear or amber colors. Screw-threaded headspace bottles have an average wall thickness of 1.25 millimeters, providing greater reliability as internal pressure increases. The screw headspace vials with 18 mm magnetic caps are suitable for autosamplers that use magnetic transport, while the crimp headspace vials can be used with aluminum caps.

Headspace vials are available in clear or amber glass with a round or flat base, a crimp seal with a beveled or square edge finish, or a screw-thread finish. Headspace vials, septum, and caps can be purchased in various quantities separately or together as convenience kits to fit your laboratory needs.
