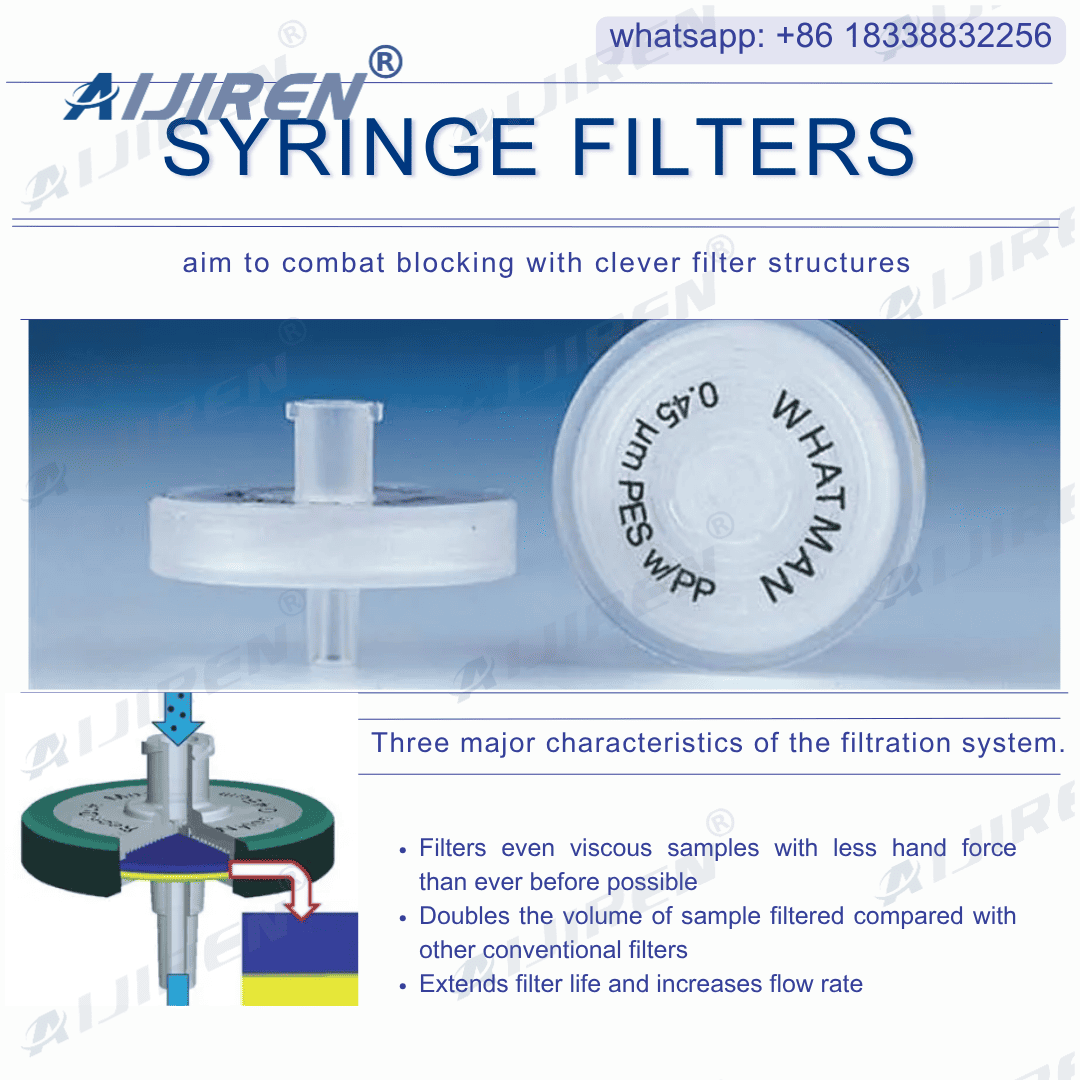

Anti-Clogging Syringe Filter Design | 50% Faster Flow Rate

Instructions for use and precautions:
1. It must be used with disposable syringes and glass syringes. The interface is standard. Put the needle filter on the syringe first, then pour the liquid into the syringe, press the push rod down, and collect the filtered liquid.
2. Do not use a syringe smaller than 10cc, because the small-volume column may cause the pressure to exceed the upper limit and cause damage to the filter membrane.
3. Only for laboratory use, one-time use, non-renewable.
4. The filtrate at the beginning of the part should be discarded. The volume is about the dead volume of the filter. Taking 25mm as an example, discard the first 1mL filtrate; or pre-clean the filter with 1 to 2mL of solution.

Syringe filtration is a crucial technique in laboratory settings, playing a vital role in sample preparation for various analytical methods.

Selected PES syringe filters provide a cleaner sample extract by removing interfering materials and fine particles down to the rated pore size. Performing a syringe filtration step before chromatographic injection helps ensure more consistent and reliable results, and helps protect delicate instruments and extend column life.

The syringe filters are available in various pore sizes and membrane materials to accommodate different filtration requirements. They are suitable for a wide range of laboratory applications, including sample preparation, clarification, and sterilization. The filters provide reliable performance and consistent filtration results, contributing to accurate and reproducible data in analytical chemistry, microbiology, and other fields.

Elevate your lab’s filtration capabilities with our High Quality PVDF Syringe Filters, designed for uncompromising performance and reliability.

Aijiren’s products enable pharmaceutical companies to increase productivity. Syringe filters and vials reduce HPLC sample preparation time and consumables usage, and track-etched and membranes are also vital to extruding liposomes for encasing and targeting drugs.

PTFE: is perfect for the filtration of gaseous or organic solvent-based samples and highly corrosive substances. Hydrophobic so provides chemical resistance to aggressive media and excellent temperature stability allowing an extended sampling range. If used with aqueous samples, the membrane usually requires pre-wetting (normally by using a small amount of alcohol). Can also be used to prevent moisture passing through air vents. pH range ~1-14.

Syringe filters are made of many different types of materials. Various materials, diameters, pore sizes, and sterile and non-sterile options are on our list. These syringe filters provide excellent microfiltration performance for HPLC, water treatment, environment, biotechnology, beverage, food, pharmaceutical and other related fields.

In addition to HPLC, syringe filters have a multitude of other applications. A syringe filter adds a few minutes and a minimal expense to your testing process, but you will see a big return on your investment. Small volume venting£¬HPLC sample preparation£¬Removal of protein precipitates£¬Routine QC analysis£¬Dissolution testing.

PTFE Syringe Filters are universal filters that are inert to a wide variety of aggressive solvents and strong acids and bases. These syringe filters can also be exposed to high temperatures and are an excellent choice for HPLC sample preparation. We offer PTFE syringe filters in both their hydrophobic and hydrophilic states.

Aijiren’s syringe filters and vials reduce HPLC sample preparation time and the use of consumables, and the track-etched membrane is also essential for extruding liposomes for encapsulation and targeted drugs.

Syringe Filters with hydrophobic PTFE membranes can be used for filtration of strong solvents, acids and alkalis. Not suitable for filtration of aqueous liquids. Filters with hydrophilic PTFE can be used for filtration of strong solvents, acids and alkalis. However, these syringe filters can also be used for the filtration of aqueous liquids, which makes this type very versatile.

The PES film is sealed in the polymer shell without the use of any adhesive. Each unit can provide ETO or Gamma radiation disinfection, and ensure that there is no pyrogen.

In HPLC analysis, the particle size of the chromatographic column packing is small and easily blocked by contaminant particles. Therefore, samples and solvents must be pre-filtered to remove particulate contaminants and protect the instrument.

Cellulose acetate is a very low protein binding membrane that is ideal for aqueous based samples and biological samples. It is a lower protein binder than either polyethersulphone or PVDF membranes, but has a lower chemical resistance than regenerated cellulose (RC). CA is a strong membrane mechanically and hydrophilic.

In order to filter the particles correctly, you need to find the right size filter. You should choose the diameter of the filter carefully. They usually have sizes of 13mm, 25mm and 30mm. Each of these has a different ability to hold particles. According to the sample size, you can choose the appropriate filter diameter. For example, a diameter of 13 mm can be used for 1-10 ml samples. Similarly, 25 mm PVDF syringe filters can be used for sample volumes of 10-100 ml. Their retention is less than 100 ml.

In HPLC analysis, the particle size of the chromatographic column packing is small and easily blocked by contaminant particles. Therefore, samples and solvents must be pre-filtered to remove particulate contaminants and protect the instrument.

Our Syringe Filters are high quality, well packaged and sold at a fair competitive price. They are available in most of the major membrane materials including Nylon, PTFE, PES, MCE, PVDF, CA, PP, and GF which are supplied in 13mm, 17mm, 25mm and 30mm formats in virgin polypropylene housings.

PVDF syringe filters are made of hydrophilic PVDF membrane and a polypropylene overmold housing. Available in 13 mm and 25 mm diameters and 0.22 μm and 0.45 μm pore sizes.

The 0.22um 0.45um Lab Use Reusable Syringe Filter With Printing finds application in diverse laboratory settings. It is suitable for pharmaceutical research, biotechnology, environmental analysis, food testing, and other scientific research fields.

The Syring Filter with nylon membrane produced by Aijiren has good hydrophilicity, acid and alkali resistance, and oxidation resistance. It is not only suitable for aqueous solutions containing acids and alkalis, but also for organic solvents such as alcohols, hydrocarbons, lipids, phenols, ketones and other organic solvents. It can be used for organic solvents such as strong acid, 70% ethanol, dichloromethane and so on. High temperature resistance, good strength, stable chemical properties.

Syringe filter is a small, disposable device that is commonly used in laboratory settings to filter or clarify fluids. It is designed to be attached to the end of a syringe and acts as a barrier that removes particles and contaminants from the fluid as it is forced through the filter.
Syringe filters typically consist of a plastic housing with a membrane filter inside. The housing has a female luer lock or luer slip connection that allows it to be securely attached to the syringe. The membrane filter, which is the key component, is made of a porous material that allows the fluid to pass through while retaining particles and contaminants above a certain size.

Use a disposable filter and a disposable sterile syringe to filter and sterilize, first suck the solution to be filtered into the syringe, and then pressure the solution into the sterile container under the filter (which contains a filter membrane with a pore size of 0.22 microns) ,This is done. If the amount of solution to be filtered is large, you can purchase a filter device with a pump.

A syringe filter is a quick, convenient and reliable filter tool used routinely in the laboratory. Because they don’t need to change the membrane and filter cleaning, it’s eliminating the complex and time-consuming preparation.

Designed to be compatible for the use on all common automated filtration systems, Standard syringe filters are color coded. Aijiren syringe filters are labeled for method validation and certification. All syringe filters are autoclavable (121 ¡ãC and 1.1 bar for 30 min).

Aijiren’s syringe filters with nylon membranes are compatible with a wide range of solvents, making them ideal for fast filtration of most aqueous and organic solutions. Therefore, when a mixture of sample aqueous solution and organic solvent passes through nylon membrane, fine droplets of extractor solvent accumulate and are separated from the sample aqueous solution. Using this simple method, the total extraction time is only 3-4 minutes; It is environmentally friendly, has no centrifugal effect, provides a higher sample purification rate by filtering receptor phases, and filtering reagents ensures reduced impurities and protects the color column.

Sterile filtration is used in many applications: serum-containing or non-serum-containing media that supports the growth of cell cultures, reagents or solutions containing sensitive components that will degrade during high temperature processing, and when there is no autoclave, filtration should be added to the sterile growth media supplement Liquid, filter samples to avoid microbial growth during storage, filter buffers, remove particulate matter and avoid microbial growth during storage, filter biological samples to be analyzed, avoid microbial contamination of expensive equipment, filter environmental samples to be analyzed, filter fermentation liquids, Further purification or analysis.
