Universal 9-425 Thread 2mL Autosampler Vials for HPLC and GC Systems

Achieve faster workflow and greater convenience with our 2mL glass autosampler vials featuring a permanently printed volume scale.
The clear and accurate markings (0.5, 1.0, 1.5mL) allow instant visual sample assessment, reducing measurement time and improving analytical precision.

9mm Blue Plastic Screw Caps is suitable for: 9mm Short Thread HPLC Vials
Caps Material: polypropylene, size: 11.5*6mm, inner diameter: 9mm, with 6mm Centre Hole or Closed-Top
Color: usually blue, other colors are also provided, such as red, black, yellow, etc
The Septa are PTFE / silicone, size: 9*1mm, the sapta could be pre-slit

Capacity: 1.5/2ml
Temperature: -60—200℃
Material: bottle (domestic borosilicate); gasket (Teflon/silicone); lid (polypropylene)
Color: bottle (transparent/amber), cap (blue)

Ensure absolute sample integrity with our professional-grade 9-425 screw caps and septa.
The blue polypropylene cap is precisely engineered to standard dimensions (9mm diameter, 6.2mm height), while the integrated red silicone/white PTFE septum provides broad chemical resistance and outstanding resealing capability for repeated injections.

blue screw cap for 9mm screw vials
with pre-slit septa white silicone blue PTFE
size: 9mm*1mm
package: 100pcs/pack

Vial Closure Size: 9mm
Vial Volume (Metric) 1.5mL
Volume (Metric) Working 1.3mL
Material: Glass
Color: Amber
Height (Metric) 32mm
Outside Diameter (Metric) 12mm
Residual Volume: <4μL

Aijiren is one of the largest 2ml 9mm sample vial with screw cap manufacturer in south of China, which supply 2ml 9mm screw HPLC vial in wholesale price. The screw 9mm HPLC sample vial meet or exceed OEM specifications to ensure autosampler compatibility. 2ml 9mm sample vial compatible with Perkinelmer.

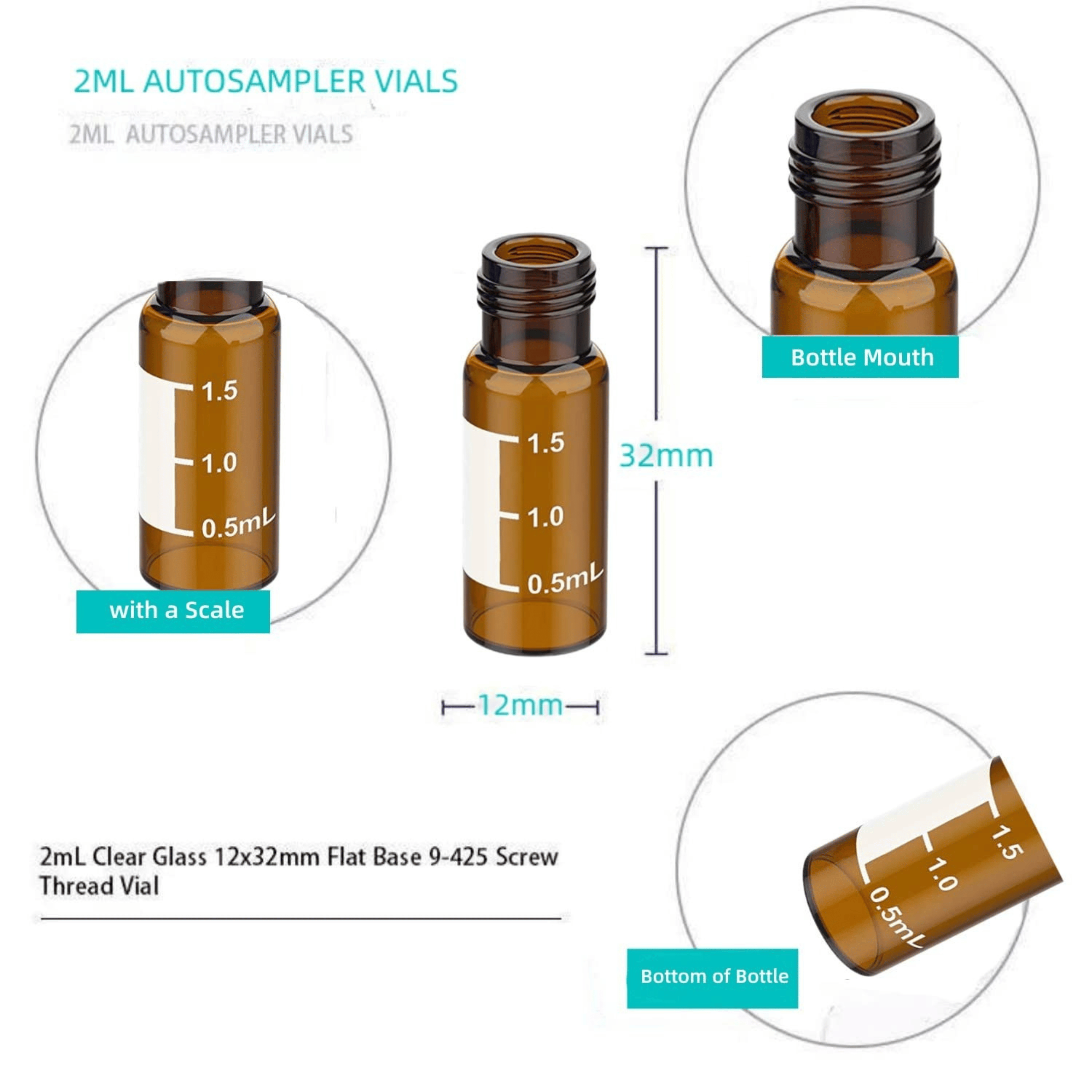

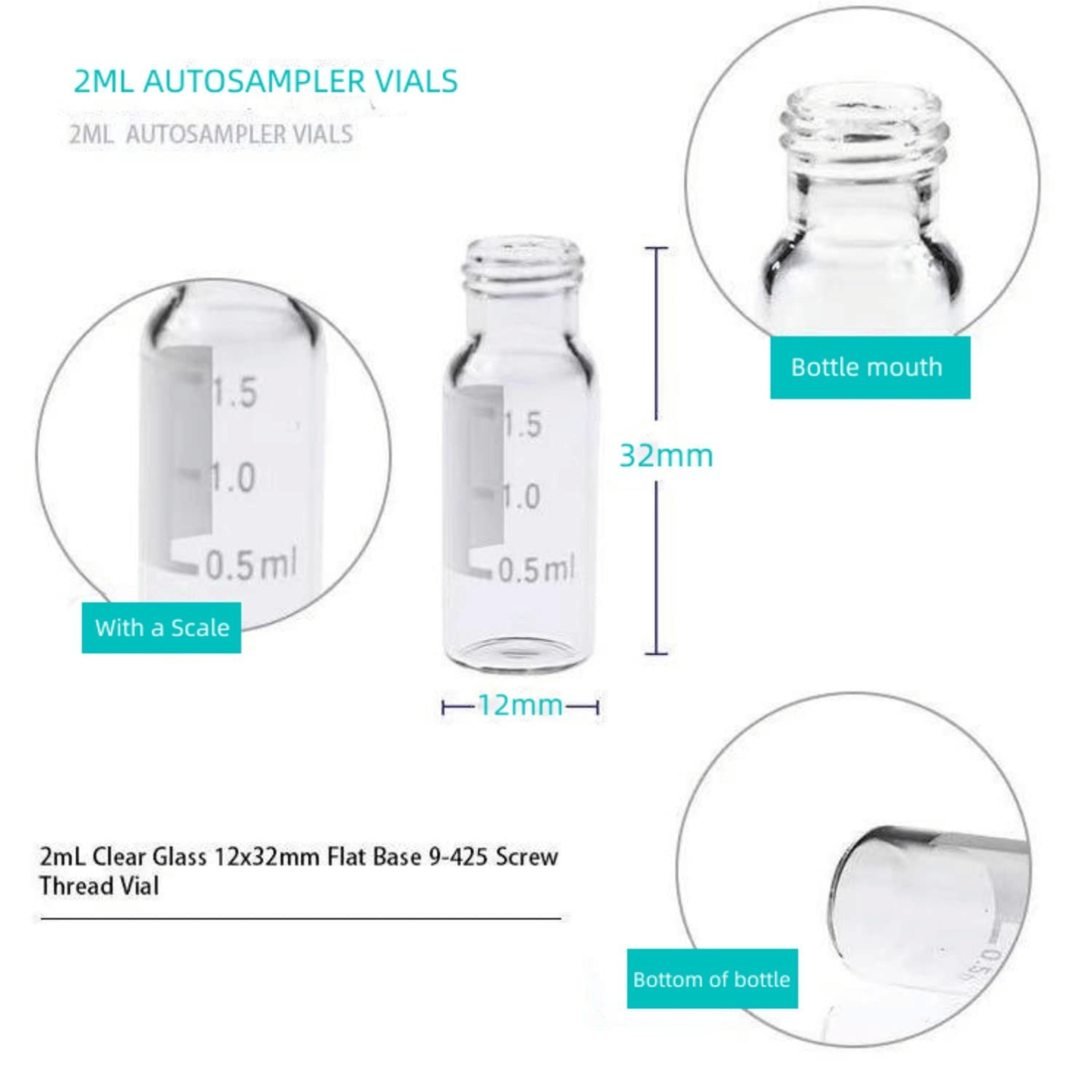

Our premium 2mL clear glass autosampler vials feature the universal 9-425 screw thread for a secure seal and reliable compatibility with standard HPLC and GC systems.
The standard 12x32mm flat-bottom design ensures smooth operation and stable performance in your autosampler tray.

Thread: 9mm short thread
Type: Closed top or 6mm center hole
Key models:

SC9196: Red cap + white PTFE/red silicone

SC9198: Yellow cap + white PTFE/red silicone

SGSC9291: Metal-reinforced blue cap

SC9291-C: Clear cap + red PTFE/white silicone

Membrane Solutions Auto sampler Vials 2ml HPLC Vials Amber Sample Vials Screw top 9-425 Type Threaded Vial, Case of 100. Our AutoSampler Vials are made from borosilicate glass and meet ASTM Type I Class A and USP Type I standards, which improves your laboratory productivity by reducing costs and saving time.

The aijiren chromatography sample vial is made of borosilicate glass and meets ASTM TYPE I ClassA and USP TYPE I standards.
There are four types: colorless and amber vial, handwriting area and no handwriting area.

9-425 short thread vials with screw caps wholesale, the best supplier in China
Aijiren provides chromatography vials, caps, vial inserts, syringe filters for hplc, glass reagent bottles, etc

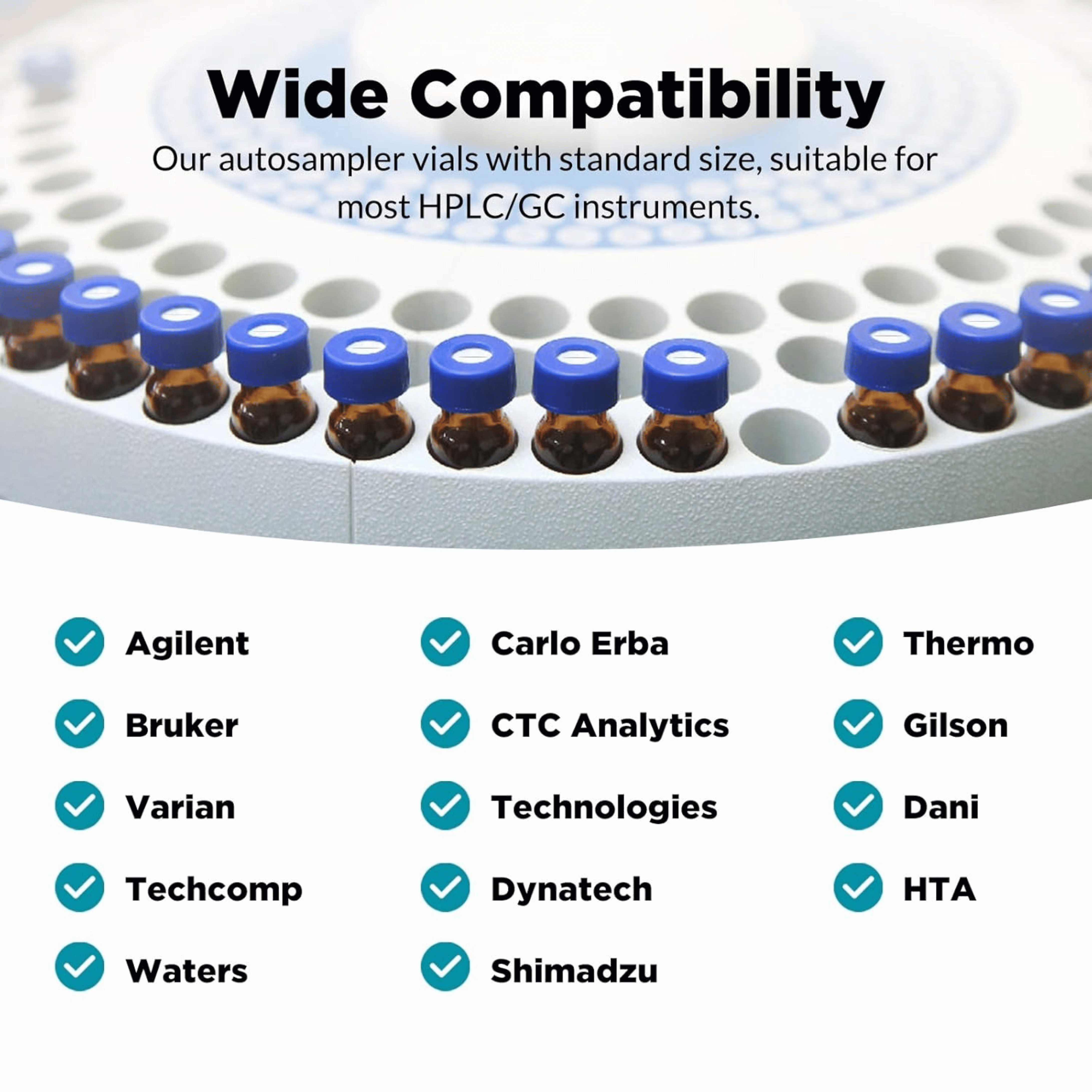

Suitable for most autosampler use in the market

Type: Screw-neck vial (ND9 standard)
Dimensions: Thread diameter 9mm × total height 12mm
Material: Borosilicate glass 3.3 (amber/transparent)
Compatibility: Suitable for all 9mm thread caps and autosamplers

Septum Thickness: Φ9 x 1mm
Cap Type:

C91: Blue cap with 6mm hole

C92: Blue closed top

C93: Black cap with 6mm hole
Septum Options:

S92: Red PTFE/white silicone

S944: Pre-slit blue PTFE/white silicone

Precision threaded sample bottles: 9mm threaded bottle mouth achieves leak-proof seal and extremely low bottle breakage rate when screwing on the cap.

These vials have an internal tapered bottom which allows the contents to be concentrated at the bottom. Allows more space and larger volumes than concentrating to very small quantities. Ideal for derivatisation or target compounds with very low target concentrations.
Vial Closure Size: 9mm
Vial Volume (Metric) 1.5mL
Volume (Metric) Working 1.3mL
Material: Glass
Color: Amber
Height (Metric) 32mm
Outside Diameter (Metric) 12mm
Residual Volume: <4μL

Aijiren’s 2ml Glass Vials can be applied in a wide range of fields. Many projects that require chromatographic analysis need to use 2ml Glass Vials, such as environmental analysis, soil analysis, pharmaceutical analysis, food analysis, etc. The aim of Aijiren is to provide high-quality chromatographic consumables for customers of chromatography.

Choose 9mm hplc sample vials: use micro-injection and high-recovery sample vials to obtain the maximum sample extraction volume without inserting them separately, and identify samples and samples through the graduated and stickable patches provided on some sample vials. Volume, obtain maximum polarity, unstable or easily recyclable samples, use silanized (inactivated) glass OH interaction compound (optional)

9mm screw thread caps, septa, and vials are designed especially for use with Aijiren’s and other rotating or robotic are samplers
2ml 12*32mm clear borosilicate glass vial,with a write-in patch; high quality polypropylene caps, ptfe / silicone septa can be pre-slit to easy needle penetration

Product name: 1.5/2ml sample vial plastic PP material

Packing: vial, boxed (100 pcs/box)/caps and septa  bag (100 pcs/pack)
Size: Vial (11.6*32mm) / Gasket (Φ9*1mm)
Material: Vial (PP) / Gasket (Teflon / Silicone) / Cap (Polypropylene)
Gasket performance: acid resistance, alkali resistance, temperature resistance, anti-sticking

Aijiren 9mm vials may be used with robotic autosamplers in place of crimp style vials. 9mm Vials have a 40% larger opening for easier sample preparation. Aijiren 9mm vials must be used with 9mm, StepVial II closures to ensure proper fit and functionality.

Aijiren’s 2ml HPLC Vial can choose whether to have a scale and label area. The label area can be used to distinguish the samples and types in the Vial in the experiment. You can also buy the pure transparent glass without the label area.

Screw Thread Top​​: 8mm/9mm neck, clear/amber options, pre-slit PTFE/silicone septa, autosampler compatible
​​Snap Top​​: 11mm neck, quick-seal design, clear/amber options
​​Crimp Top​​: 11mm neck, graduated markings, ideal for precision experiments
​​Compatibility​​: Works with Aijiren, Shimadzu, Thermo Fisher instruments
​​Advantages​​: ISO9001:2015 certified, 50% cheaper than brand-name alternatives, customizable packaging

Amber Borosilicate Glass
ND9mm Screw Neck Vial
11.6*32mm
With Writing Spot
9mm Blue Short Screw PP Cap
with 6mm Centre Hole
Pre-slit / non-slit PTFE Silicone Septa
Septa Size: 9*1mm
