40ml Purge and Trap Vials from Aijiren

The manufacturer’s lot number for each component of this product is tracked until all procedures are completed at which time a final lot number is assigned and documented. A randomly selected collection of vials from each completed lot are submitted to an independent validation laboratory for quality control purposes to confirm that the TOC vials comply with the quality specification. The vial, closure and dust cover undergo comply with stringent quality standards and specifications.

Aijiren offers pre-cleaned 40 ml glass vials certified for Total Organic Carbon (TOC vials).
We offer TOC vials certified to contain less than 10 parts per billion (PPB) and less than 20 parts per billion (PPB) for use in pharmaceutical and biotechnology applications.

EPA vials must be clean and free of substances that might influence the analysis. Glass Vials that meet these requirements are called EPA vials, or sometimes VOA (volatile organic analysis) vials. Aijiren flat bottomed EPA vials are available in 20, 30, 40 and 60ml sizes, suitable for water or soil samples.

Aijiren’s Purge and Trap Vials can ensure good sealing, high temperature resistance, and high temperature sterilization. It is the best choice for your laboratory sample storage vail.

Polypropylene Screw Cap with Septa – Polypropylene screw cap with precision-fit septa provide an evaporation-proof seal. Bi-layer include silicone and PTFE. Silicone septa for multiple injections. PTFE-lined screw cap for organic samples. Screw caps provide an inert, airtight seal and direct puncture-access to samples with a syringe needle.

EPA, VOA, VOC, TOC Vials
Amber Clear Glass Screw Vials
24-400 Screw Neck Vials

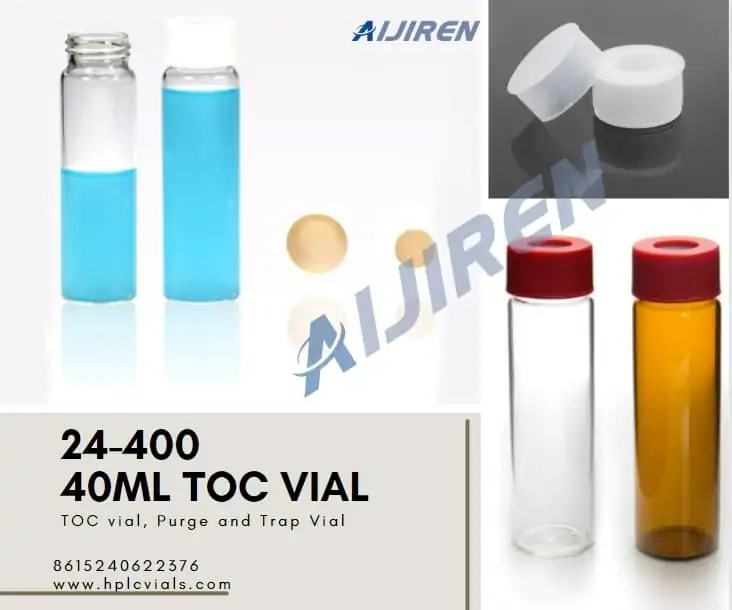

40ml Vials Use for TOC & Purge and Trap System
With Writing Spot or without
Screw PP Caps, Closed top or with 15mm centre hole
Cap Color: White, Black, Red
Septa: Nature PTFE/Nature Silicone
Septa Size: 22*3mm

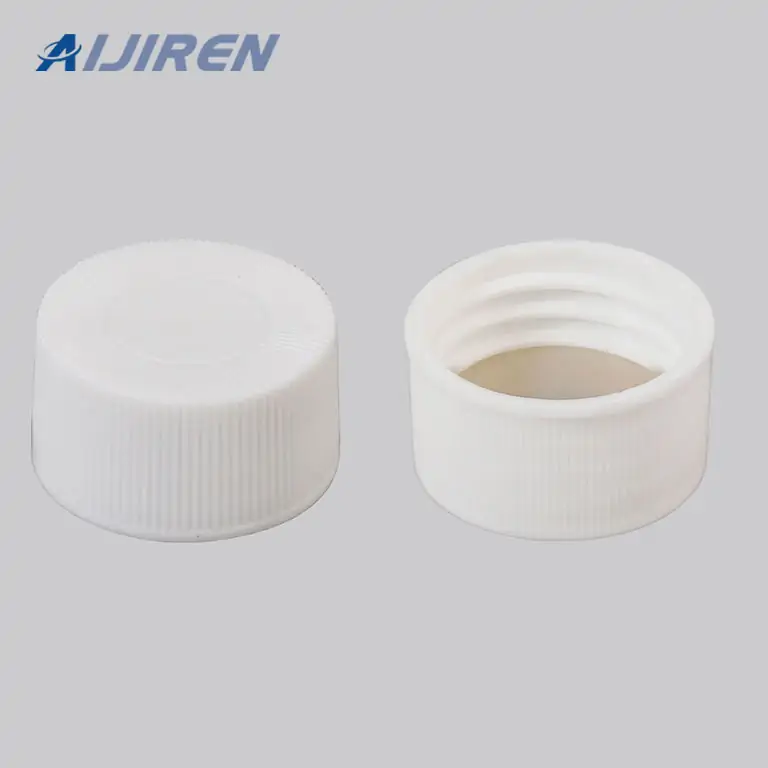

24-400 PP Screw Caps
with 15mm Centre Hole or Closed top
Color: White, Black, Red or Customized
Septa Material: PTFE / Silicone
Septa Size: 22*3mm
Compatible brands: Aijiren, Dionex, Shimadzu, Tekmar, Thermo Scientific, Varian
Use for TOC, Purge and Trap System

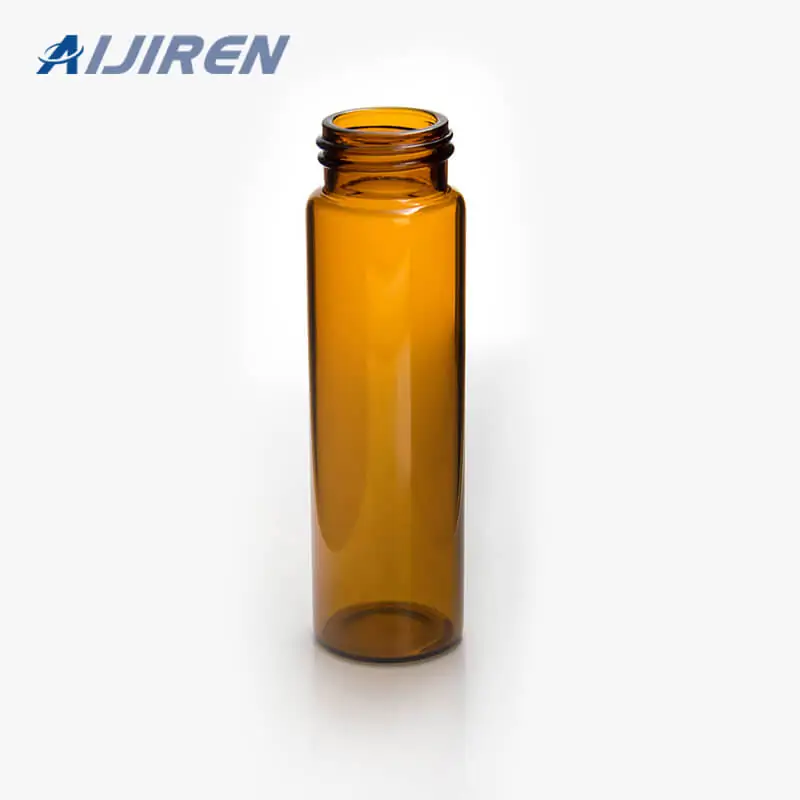

Aijiren flat bottomed EPA vials are available in 40 sizes, suitable for water or soil samples. They are made of(offered in) chemically inert Type I borosilicate glass, in either clear or amber for light sensitive samples. The 40 mL vials are offered in clear (Type 1, 33 expansion) and amber Type 1, 51 expansion) borosilicate glass. They are avialable in two sizes, 27.5 x 95mm or 29 x 82mm and are packaged 100 vials per box.

The 40ml TOC vial is specifically designed for the storage and analysis of Total Organic Carbon (TOC) samples. These vials are ideal for applications that require the measurement of organic carbon content in environmental, water, or wastewater samples. The vials provide a secure and leak-proof storage solution for TOC samples.

Purge and trap vials, 40ml 24-400 screw neck
Clear / Amber Borosilicate Glass
PP caps and septa

TOC caps and vials are ideal for sampling and storage. The cap is lined with PTFE/silicone resin, which has excellent airtightness and chemical resistance. High temperature resistance -60 degrees Celsius -200 degrees Celsius. The TOC Vial cap is made of high-quality materials, which can eliminate sample contamination

Storage glassware manufactured in type 1, class A, 33 extended borosilicate glass or 51A amber glass. The capacity range is 40mL. Provides a constant pH for the sample retention period. Chemically inert cap suitable for most chromatography and storage applications. Top quality PTFE/silicone septum used for cleanliness.

Suitable for: 24-400 Screw Neck Vials, 20-60ml EPA VOA TOC Vials
Caps Material: PP
Cap Diameter: 24mm
Caps with Closed-top or with 15mm center hole
Septa Material: Nature PTFE / Nature Silicone
Septa Size: 22*3mm Low Bleeding

These glass culture tubes These glass culture tubes feature a durable construction to withstand the rigors of laboratory use. The screw cap provides an airtight seal to prevent sample contamination and evaporation. The clear glass material allows for easy visual inspection of the sample. The tubes are compatible with common laboratory techniques such as centrifugation, incubation and sample storage. They may also include graduation marks for accurate volume measurement and convenient sample identification.

Type: 5.0 type purge and capture bottle
Capacity: 40mL
Neck: 24-400 thread
Dimensions: Ø24mm × height 95mm
Material: borosilicate glass (transparent/amber) + PP cap
Model:
・V4015: Transparent bottle
・V4025: Transparent bottle with writing area
・V4035: Amber bottle
・V4045: Amber bottle with writing area

Aijiren Low-Level TOC Vials are specially cleaned and packaged to reduce TOC to the lowest levels possible, assuring a low background for your testing.
This custom package has been developed and tested to eliminate contamination during transportation and storage. Our TOC vials are available in <30PPB and <10PPB.
